Introduction
Every precision-cut bracket and accurately assembled panel begins with the sheet metal fabrication process. When fabrication is done correctly, components fit together as intended, reducing rework, production delays, and material waste. Even small dimensional errors can affect the quality, performance, and assembly of the final product.
Whether you are developing a prototype or planning large-scale production, understanding the sheet metal fabrication process helps you choose the right manufacturing methods, materials, and finishing techniques. This guide covers the key fabrication stages, common processes, and factors that influence the quality and cost of the finished component.
What is Sheet Metal Fabrication?
Sheet metal fabrication is the process of turning flat metal sheets into finished parts or products using a combination of manufacturing techniques. Depending on the design, this may involve cutting, bending, forming, machining, and surface finishing to achieve the required shape and function.
Unlike casting or forging, which shape metal in a molten or highly heated state, sheet metal fabrication starts with pre-manufactured metal sheets. As the process is highly versatile, sheet metal fabrication is suitable for everything from one-off prototypes to large production runs.
Materials Used in Sheet Metal Fabrication
The material you choose affects the performance, durability, and cost of the finished component. Each type of metal offers different properties, making some materials better suited to certain applications than others:
- Mild Steel: Strong, affordable, and easy to form and weld, making it one of the most widely used materials for general fabrication and structural applications.
- Stainless Steel: Offers excellent corrosion resistance, high strength, and hygienic properties, making it ideal for food processing, medical, and outdoor environments.
- Aluminium: Lightweight, naturally corrosion-resistant, and easy to machine and form. Its high strength-to-weight ratio makes it a popular choice for aerospace, automotive, and electronics applications.
- Copper: Provides outstanding electrical and thermal conductivity along with good corrosion resistance, making it well-suited for electrical and heat transfer applications.
- Brass: Combines good corrosion resistance with excellent machinability and an attractive finish, making it suitable for decorative and plumbing components.
Pros and Cons of Sheet Metal Fabrication
Before exploring the sheet metal fabrication process, it is useful to understand its advantages and limitations. These influence everything from material selection and design decisions to production costs, manufacturing efficiency, and the quality of the finished component.
Pros of Sheet Metal Fabrication
Sheet metal fabrication is widely used because it offers a combination of precision, flexibility, and manufacturing efficiency.
- High dimensional accuracy: By combining Computer-Aided Design (CAD) with modern fabrication equipment, components with tight tolerances and consistent dimensions can be produced efficiently.
- Excellent repeatability: Once the manufacturing process is established, identical parts can be produced consistently across multiple production runs.
- Suitable for prototypes and mass production: The same fabrication methods can be used to create a single prototype for testing or scale up efficiently for large production volumes.
- Supports complex component designs: A combination of cutting, bending, punching, welding, and machining allows manufacturers to produce intricate parts with multiple features.
- Wide range of material options: Sheet metal fabrication supports materials including stainless steel, mild steel, aluminium, copper, and brass, allowing manufacturers to choose the best material for the application.
- Strong yet lightweight components: Sheet metal offers a high strength-to-weight ratio, making it suitable for products that require durability without excessive weight.
- Efficient material utilisation: Careful part layout and fabrication planning help maximise material usage and reduce scrap, improving production efficiency.
- Sustainability and recyclability: Common sheet metals such as steel and aluminium are highly recyclable, while efficient fabrication processes help minimise material waste and improve resource efficiency.
Cons of Sheet Metal Fabrication
While sheet metal fabrication is highly versatile, certain design and manufacturing constraints should be considered during product development.
- Complex designs can increase costs: Parts with numerous bends, tight radii, or intricate features often require additional fabrication steps, increasing production time and cost.
- Tight tolerances may require secondary machining: Extremely precise dimensions or critical features may need additional machining operations after fabrication.
- Assembly may involve multiple joining processes: Large or complex products often require welding, riveting, fastening, or other joining methods, which add manufacturing time.
- Material springback must be accounted for: Many metals partially return to their original shape after bending, so tooling and bend allowances must be carefully calculated to achieve the desired dimensions.
- Higher upfront tooling costs: Some fabrication processes, such as stamping and punching, require custom tooling. While this becomes more cost-effective for larger production runs, it can increase the initial investment for smaller projects.
- Works with uniform material thickness: Sheet metal fabrication starts with flat sheets of a consistent thickness. If a design requires varying wall thicknesses, additional fabrication or manufacturing processes may be needed.
- Not ideal for every part design: Thicker sheet metal is generally more difficult to bend, and tight bend radii are easier to achieve with thinner materials. For very thick, highly complex, or solid components, processes such as machining or casting may be more suitable.
How Sheet Metal Products Are Made: An Overview
Although every project is different, most sheet metal projects follow the same three main stages:
| Stage | What Happens | Why It Matters |
| Design | CAD models and engineering drawings are created to define the material, dimensions, tolerances, bends, holes, and other manufacturing requirements. | Helps identify potential issues early, reducing errors, material waste, and production costs. |
| Fabrication | The sheet metal is cut, formed, machined, and assembled using the most suitable manufacturing processes for the project. | Produces components that meet the required specifications, quality standards, and production targets. |
| Post-processing & Finishing | Components are deburred, heat treated, or surface finished to improve appearance, durability, corrosion resistance, or performance. | Enhances the final product and prepares it for its intended application. |
Sheet Metal Cutting
Cutting is typically the first step in sheet metal fabrication, shaping the raw metal sheet into the required profile. The cutting method depends on the material, thickness, precision requirements, and production volume.
1. Mechanical Cutting
Mechanical cutting separates metal using physical force rather than thermal energy. These processes are commonly used when straight cuts or simple shapes are required in high production volumes.
Advantages:
- Fast production rates
- Low operating costs
- No heat-affected zone
- Minimal material distortion

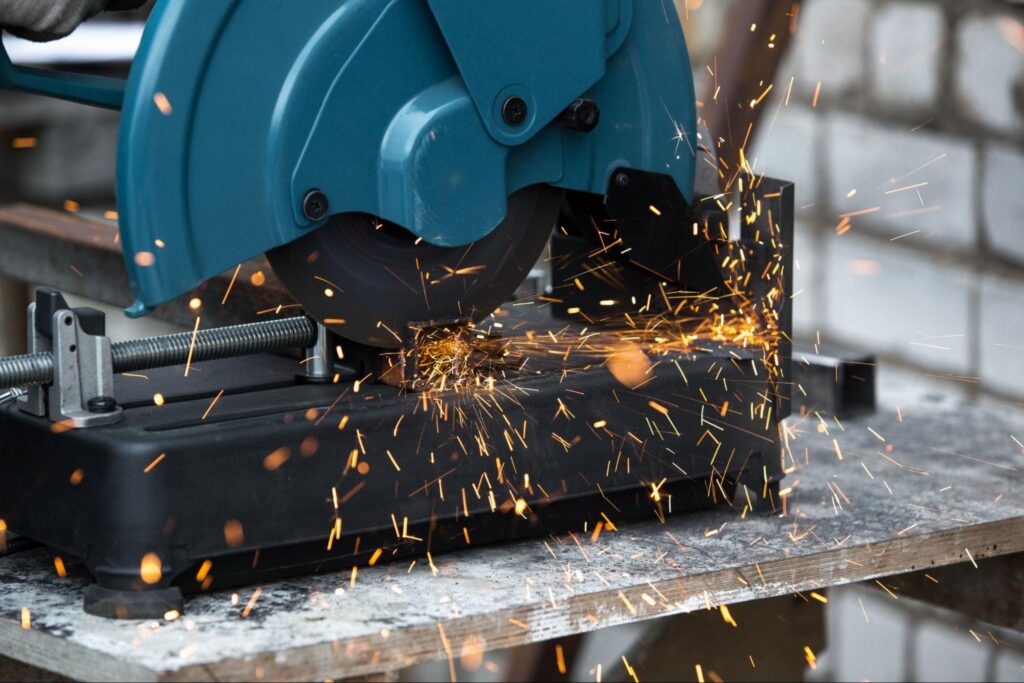

a. Sawing
Sawing uses toothed blades, such as band saws or circular saws, to cut stock material into manageable lengths before fabrication.
Unlike laser or plasma cutting, sawing is mainly used for bars, tubes, pipes, and structural sections rather than flat sheet.
Advantages:
- Accurate length cutting
- Suitable for thick stock materials
- Produces relatively little material waste
Typical applications:
- Structural steel sections
- Metal tubes and pipes
- Solid round bars
- Aluminium extrusions

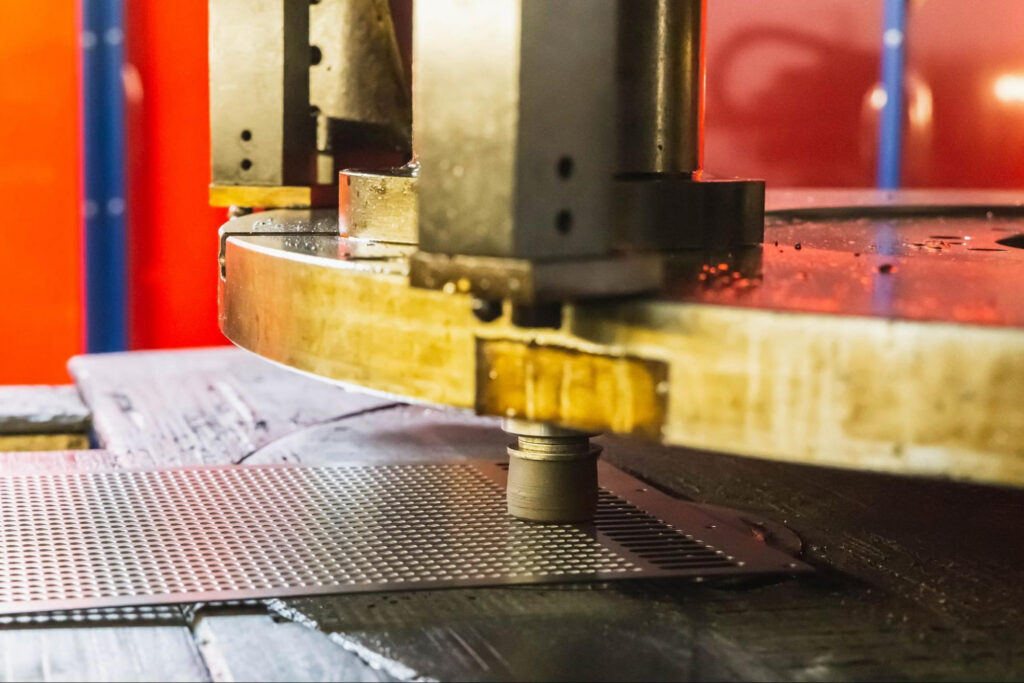

b. Punching
Punching uses a punch and die to create holes or features by applying high compressive force to the sheet metal.
Advantages:
- Very fast production for repetitive parts
- Consistent hole size and location
- Lower cost than laser cutting for large production runs with standard hole patterns
Features that can be produced:
- Round and shaped holes
- Slots
- Louvres
- Embossments
- Countersinks
- Formed tabs
Typical applications:
- Electrical cabinets
- Ventilation panels
- Control enclosures
- Appliance components
c. Shearing
Shearing cuts sheet metal by applying opposing forces from two blades until the material fractures along a straight line.
Advantages:
- Fast and economical
- Produces straight, clean cuts
- No chips or heat-affected zone
- Well suited for high-volume production
Typical applications:
- Preparing sheet stock
- Trimming sheet edges
- Producing rectangular blanks

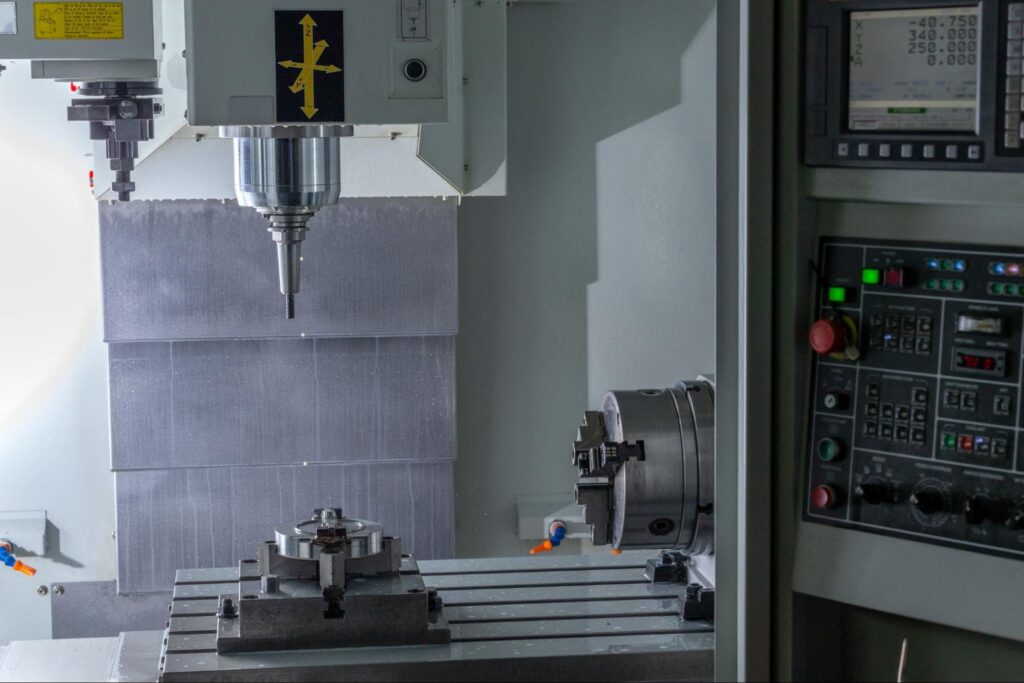

d. CNC Machining
Although sheet metal fabrication primarily relies on cutting and forming processes, some parts require CNC machining to achieve features or tolerances that fabrication equipment cannot produce.
Machining removes material using rotating cutting tools under computer numerical control (CNC).
Typical applications:
- Tight-tolerance mounting holes
- Precision locating features
- Machined interfaces
- Components requiring threaded holes or complex geometries
Machining is commonly performed after cutting and forming when higher dimensional accuracy or specialised features are required. It is generally more precise than standard fabrication processes, but also increases manufacturing time and cost.

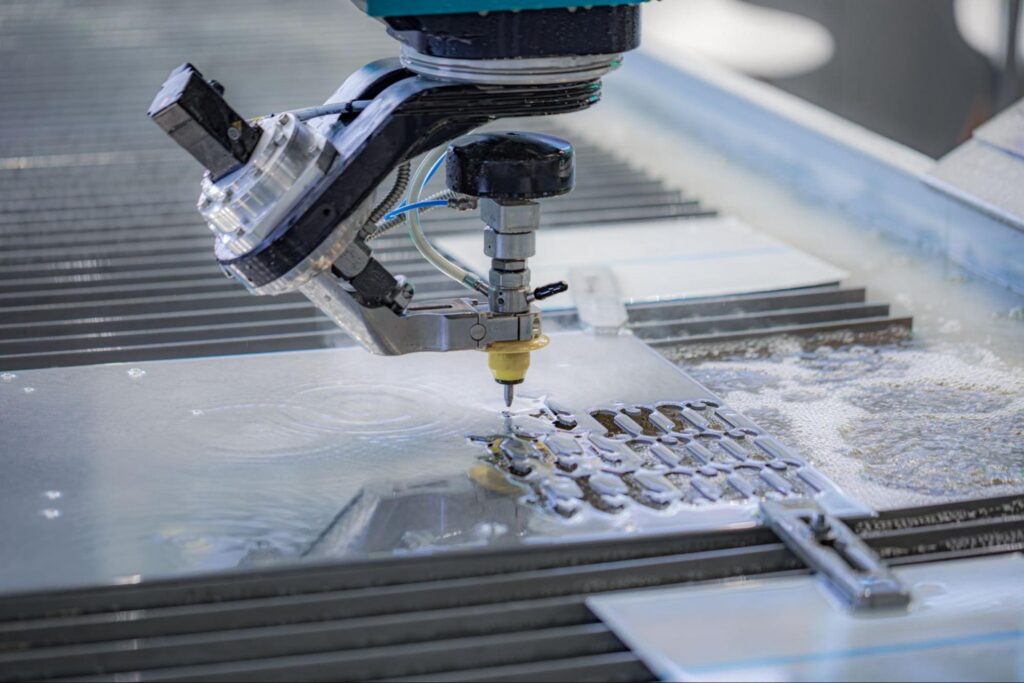

e. Waterjet Cutting
Waterjet cutting uses an ultra-high-pressure stream of water, often mixed with an abrasive to erode and cut through metal.
Because the process does not generate significant heat, it avoids creating a heat-affected zone (HAZ), making it suitable for materials that may warp or lose mechanical properties when exposed to high temperatures.
Advantages:
- Produces no heat-affected zone
- Cuts a wide range of metals, including stainless steel, aluminium, copper, and hardened alloys
- Suitable for thick materials, often exceeding 100 mm depending on the machine
- Delivers good edge quality with minimal burr formation
Limitations:
- Generally slower than laser or plasma cutting
- Higher operating costs due to abrasive consumption
- May require additional finishing for very tight tolerances
Typical applications:
- Aerospace components
- Thick steel plates
- Heat-sensitive materials

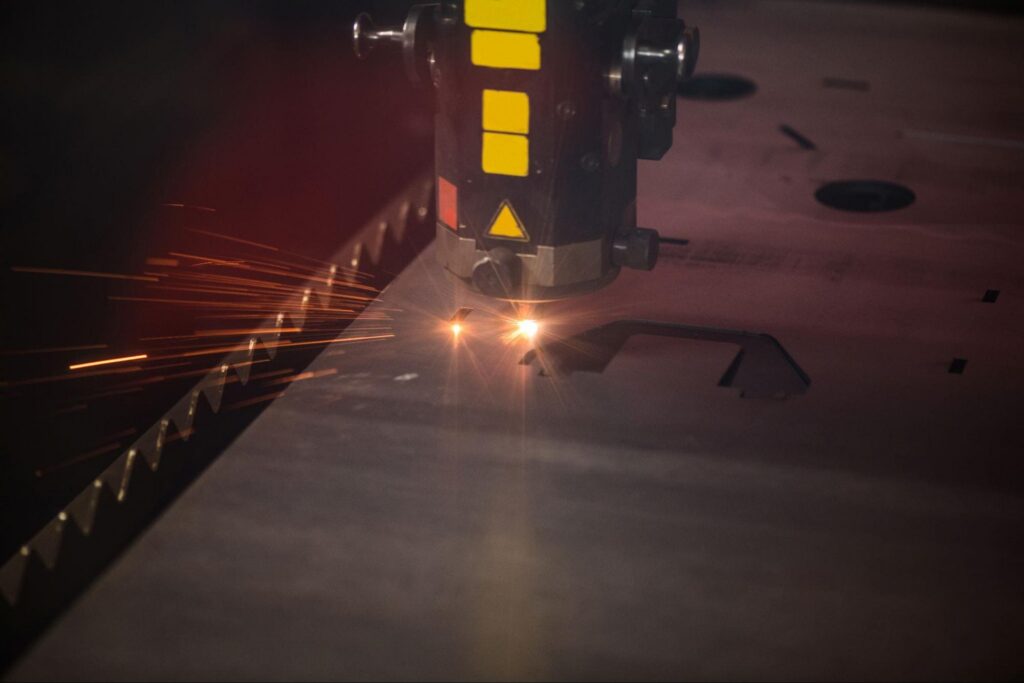

f. Laser Cutting
Laser cutting uses a focused, high-energy laser beam to melt, burn, or vaporise metal while an assist gas removes the molten material from the cut.
Modern fibre laser systems are widely used for sheet metal fabrication because they provide excellent accuracy, fast cutting speeds, and minimal material waste.
Advantages:
- High dimensional accuracy and repeatability
- Narrow kerf width for intricate designs
- Smooth cut edges with minimal finishing required
- Fast processing of thin to medium-thickness sheet metal
Limitations:
- Equipment costs are relatively high
- Less economical than plasma for very thick carbon steel
Typical applications:
- Electrical enclosures
- Precision brackets
- Automotive parts
- HVAC components
- Decorative architectural panels
Sheet Metal Forming
Forming changes the shape of sheet metal by bending or deforming it into the required geometry without cutting away material. It is an essential step in producing functional and structurally strong components.

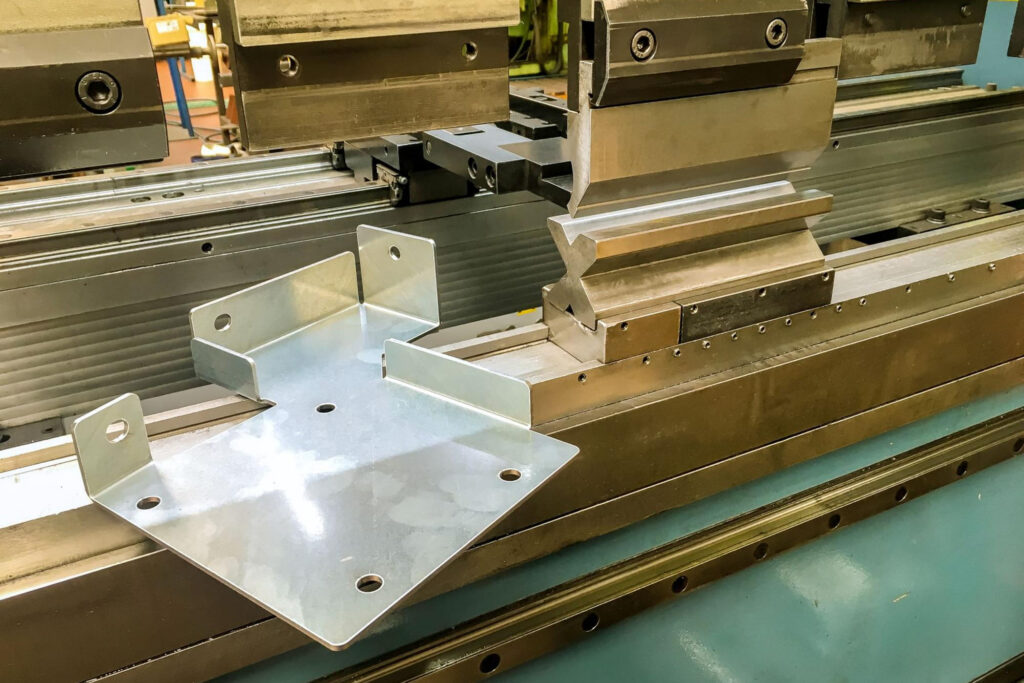

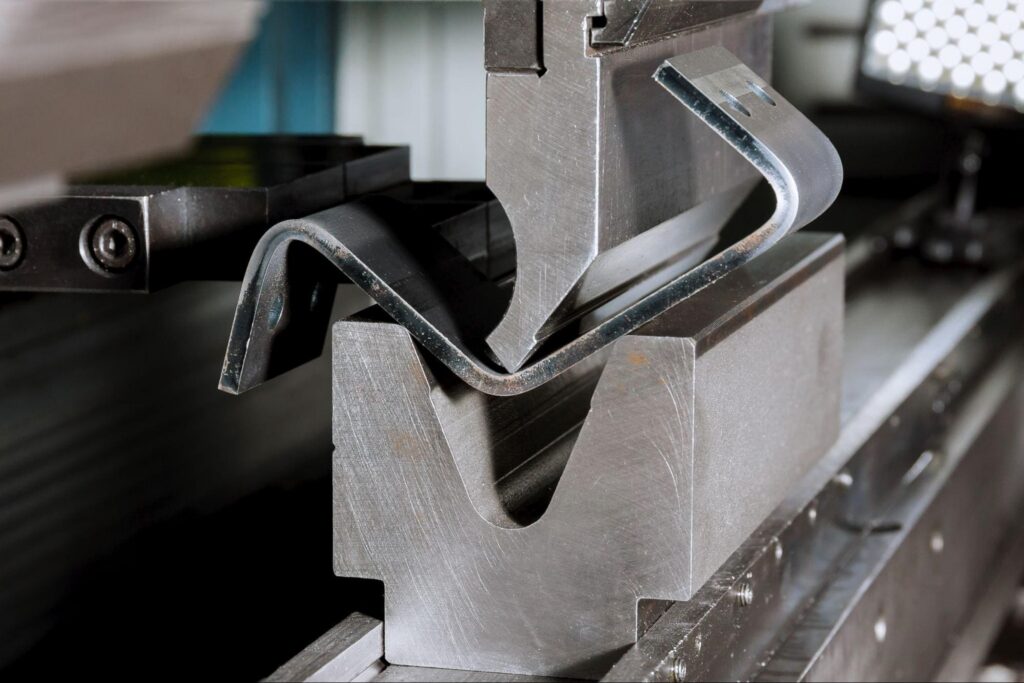

1. Bending
Bending uses press brakes to create angles and folds.
Common bend types include:
- V-bending
- Air bending
- Bottom bending
- Coining
Proper bend allowance calculations help maintain dimensional accuracy.

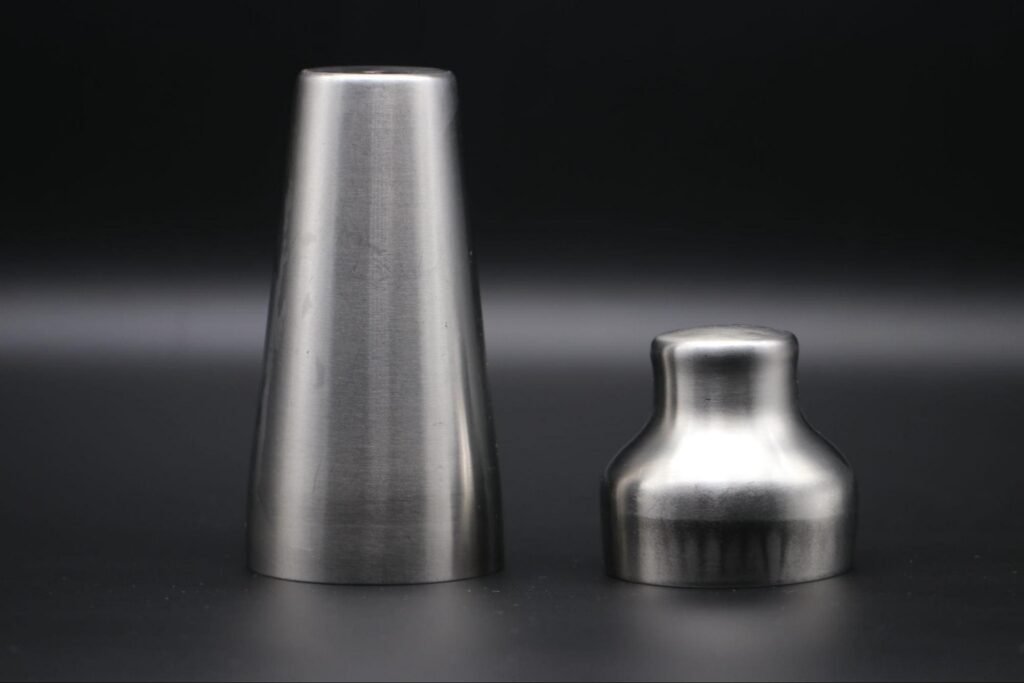

2. Spinning
Metal spinning forms rotationally symmetrical components over a rotating mandrel.
Typical applications include:
- Lighting fixtures
- Satellite dishes
- Funnels
- Aerospace components
- Kitchenware
Sheet Metal Joining and Assembly
Once individual components have been fabricated, they are joined together to create the final assembly. The joining method depends on factors such as the material, required strength, appearance, and whether the joint needs to be permanent or removable:
| Joining Method | Description | Common Applications |
| TIG Welding | Produces clean, high-quality welds with excellent precision and minimal spatter. Best suited for thin materials and applications where appearance is important. | Stainless steel fabrication, aluminium components, aerospace parts, food-grade equipment |
| MIG Welding | Uses a continuously fed wire electrode for faster welding speeds, making it ideal for general fabrication and higher production volumes. | Automotive components, structural steel, industrial equipment |
| Brazing | Joins metals using a filler metal without melting the base material. Produces strong joints with less heat than welding. | HVAC systems, pipe assemblies, dissimilar metals |
| Soldering | Uses a lower-temperature filler metal to create joints without melting the base material. Best suited for lighter-duty applications. | Electrical components, electronics, thin sheet metal |
| Threaded Holes & Screws | Creates removable joints that allow components to be assembled, serviced, and replaced when required. | Equipment panels, enclosures, machinery |
| Bolts & Nuts | Provides strong, removable joints with high clamping force for larger assemblies. | Structural frames, machinery, industrial equipment |
| Rivets | Forms permanent mechanical joints without welding, making them suitable for thin materials and heat-sensitive applications. | Aircraft structures, aluminium assemblies, sheet metal enclosures |
| Adhesive Bonding | Bonds components without heat or drilling while distributing loads evenly across the joint. Often used alongside mechanical fasteners. | Automotive panels, composite assemblies, decorative panels |
Sheet Metal Post-processing and Finishing
Heat Treatment
Heat treatment alters the mechanical properties of metal to improve strength, hardness, toughness, or formability. The process used depends on the material and application:
| Process | Purpose | Common Applications |
| Annealing | Relieves internal stresses and improves ductility, making the material easier to bend or form. | Components requiring extensive forming or reshaping |
| Through Hardening (Quenching) | Hardens the entire cross-section of the material to increase strength and wear resistance. | Shafts, tools, and mechanical parts |
Surface Finishing
Surface finishing improves the appearance, durability, and corrosion resistance of fabricated sheet metal components. Common surface finishing methods include:
| Process | Purpose | Common Applications |
| Bead Blasting | Produces a uniform matte finish while removing oxidation, scale, and surface contaminants. | Stainless steel, aluminium, and decorative components |
| Powder Coating | Applies a durable protective coating that resists corrosion, abrasion, chemicals, and UV exposure. | Outdoor equipment, enclosures, machinery, and architectural products |
| Anodising | Creates a protective oxide layer on aluminium to improve corrosion resistance, hardness, and appearance. | Aluminium enclosures, panels, and consumer products |
| Plating | Improves corrosion and wear resistance while enhancing functional properties such as electrical conductivity. | Components requiring additional protection or functional surface properties |
| Polishing | Smooths the surface by removing minor imperfections for a clean, refined finish. | Components requiring a smooth or polished appearance |
| Painting | Adds custom colours and textures while improving surface protection and appearance. | Enclosures, equipment and components requiring specific colours |
Conclusion
The difference between a sheet metal part that fits perfectly and one that needs rework often comes down to three decisions: the right fabrication method, the right material, and the right finish. Get those right, and you save on cost, cut down on lead time, and end up with a part that performs exactly as designed.
At ARRK Asia, we combine precision sheet metal fabrication with extensive rapid prototyping and low-volume manufacturing expertise to help bring your designs to life. Whether you’re developing a functional prototype or preparing for production, our team works closely with you to deliver high-quality parts with speed, accuracy, and reliability. Contact us today for a consultation and discover the best solution for your project.
Frequently Asked Questions
1. Which metal is most commonly used in sheet metal fabrication?
Mild steel is one of the most commonly used materials because it offers a good balance of strength, affordability, and weldability. Stainless steel is preferred for corrosion resistance, while aluminium is widely used where lightweight components are required.
2. What is the difference between fabrication and machining?
Fabrication primarily shapes and assembles sheet metal using processes such as cutting, bending, and welding. Machining removes material with cutting tools to achieve highly precise dimensions, threads, or surface finishes. Many projects combine both methods.
3. How do manufacturers choose between laser, waterjet, and plasma cutting?
The right cutting method depends on the material, thickness, required precision, and budget.
- Laser cutting: Best for thin to medium-thickness materials that require high precision, clean edges, and fast production.
- Waterjet cutting: Ideal for thick or heat-sensitive materials, as it cuts without generating a heat-affected zone.
4. What industries benefit the most from sheet metal fabrication?
Industries including aerospace, automotive, electronics, medical devices, food processing, construction, industrial equipment, telecommunications, energy, and defence all rely heavily on fabricated sheet metal components because of their strength, versatility, and scalability.
5. What factors affect the cost of sheet metal fabrication?
Several factors influence cost, including material type, sheet thickness, part complexity, production volume, required tolerances, fabrication processes, finishing requirements, tooling, and inspection standards. Designing parts for manufacturability can significantly reduce production costs.
