Introduction
Catching a design flaw during prototyping costs a fraction of what it costs to catch it after production has already started. That is exactly why prototype metal fabrication is so valuable. By producing functional metal prototypes, product development teams can verify dimensions, test performance, and reduce manufacturing risks before full-scale production begins.
This guide explores the different prototype metal fabrication techniques, materials, surface finishes, applications, and best practices to help you choose the most suitable approach for your project.
What is Prototype Metal Fabrication?
Prototype metal fabrication is the process of producing metal parts in small quantities to test and refine a product before full-scale production.
It allows businesses to evaluate a component’s dimensions, functionality, manufacturability, and overall performance before investing in production tooling or high-volume manufacturing.
Benefits of Prototype Metal Fabrication
Here are the reasons why prototype metal fabrication is often the preferred choice during product development:
- Faster product development: Modern fabrication methods such as CNC machining can produce prototypes within days rather than weeks. Faster turnaround allows teams to test designs earlier, make improvements, and complete multiple design iterations without delaying the overall development schedule.
- Accurate functional testing: Metal prototypes closely replicate the mechanical properties of production components, making them suitable for evaluating structural strength, wear resistance, heat tolerance, and overall performance under real operating conditions.
- Better dimensional accuracy: Many metal prototyping processes can achieve tight tolerances, making it easier to verify critical dimensions and ensure components fit and assemble as intended before production.
- Easier design iterations: Building and testing prototypes allows teams to identify design improvements early. Refining the design before production is typically faster, more cost-effective, and less disruptive than making changes after production tooling has been completed.
- Lower manufacturing risks: Testing a prototype before mass production helps uncover potential issues related to manufacturability, assembly, material selection, or performance. Addressing these challenges early reduces the likelihood of costly production delays or product failures.
Different Types of Metals for Prototype Metal Fabrication
Selecting the right material is just as important as choosing the fabrication method. The table below summarises some of the most commonly used metals for prototype metal fabrication.
| Material | Advantages | Common Applications |
| Aluminium (AL 5052 or AL 6061) | Lightweight, corrosion resistant, excellent machinability | Automotive, aerospace, consumer products |
| Stainless Steel (SUS303) | High strength, corrosion resistant, hygienic | Medical devices, industrial equipment |
| Copper (Beryllium Copper) | Excellent electrical and thermal conductivity | Electrical/electronic connectors |
Factors to Consider When Choosing a Metal for Metal Prototyping
- Strength-to-weight ratio: Some applications require components that are both lightweight and structurally strong. Materials such as aluminium offer excellent strength-to-weight ratios, making them ideal for aerospace, automotive, and robotics applications.
- Corrosion resistance: If the prototype will be exposed to moisture, chemicals, or outdoor environments, corrosion resistance is an important consideration. Stainless steel and aluminium generally provide better corrosion resistance.
- Biocompatibility: Medical devices and healthcare products often require materials that are safe for contact with the human body. Stainless steel are commonly selected because of their proven biocompatibility and corrosion resistance.
- Electrical and thermal conductivity: For electrical components or heat management applications, conductivity is a key factor. Copper offers excellent electrical and thermal conductivity, while aluminium is often chosen as a lightweight alternative.
- Vibration and mechanical performance: Some prototypes must withstand repeated vibration, impact, or cyclic loading during testing. Selecting a material with suitable fatigue strength helps ensure reliable performance throughout product validation.
- Machinability: Certain metals are easier and faster to machine than others. Aluminium generally offers excellent machinability, allowing shorter production times and lower manufacturing costs.
Prototype Metal Fabrication Techniques
Below are the most common prototype metal fabrication techniques used across various industries. Depending on the design and application, manufacturers may use a single fabrication method or combine multiple techniques to produce the desired prototype.

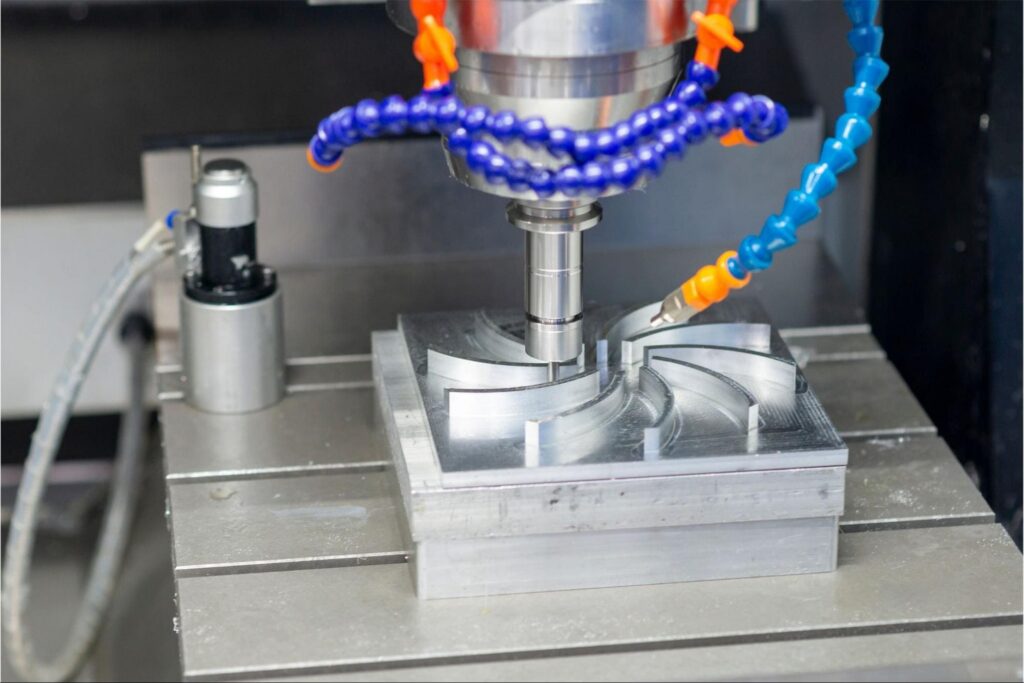

1. CNC Machining
CNC (Computer Numerical Control) machining is one of the most widely used methods for prototype metal fabrication. The process uses computer-controlled cutting tools to remove material from a solid metal block until the desired geometry is achieved.
Advantages:
- High dimensional accuracy
- Excellent surface finish
- Suitable for functional prototypes
- Compatible with many engineering metals
- No tooling required for low-volume production
Limitations:
- Material wastage due to subtractive manufacturing
- Higher costs for highly complex geometries
- Longer machining times for intricate designs
Best suited for:
- Precision components
- Mechanical assemblies
- Functional testing
- Production-ready prototypes

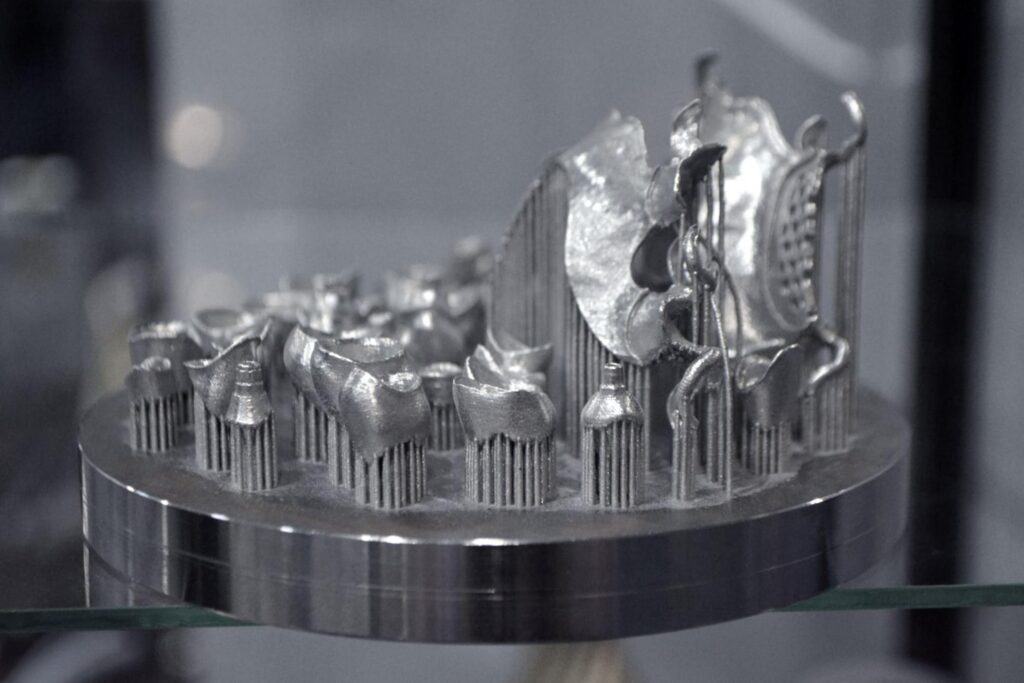

2. Direct Metal Laser Sintering (DMLS)
Direct Metal Laser Sintering (DMLS) is an additive manufacturing process that builds metal parts layer by layer using a high-powered laser to fuse fine metal powder. Unlike CNC machining, which removes material, DMLS creates components directly from a digital CAD model.
Advantages:
- Produces highly complex geometries
- No tooling required
- Reduces material waste
- Supports rapid design iterations
- Ideal for lightweight structures
Limitations:
- Higher equipment and material costs
- Rougher surface finish compared to CNC machining
- Post-processing is often required
- Slower for larger components
Best suited for:
- Aerospace components
- Medical devices
- Lightweight structures
- Complex engineering parts

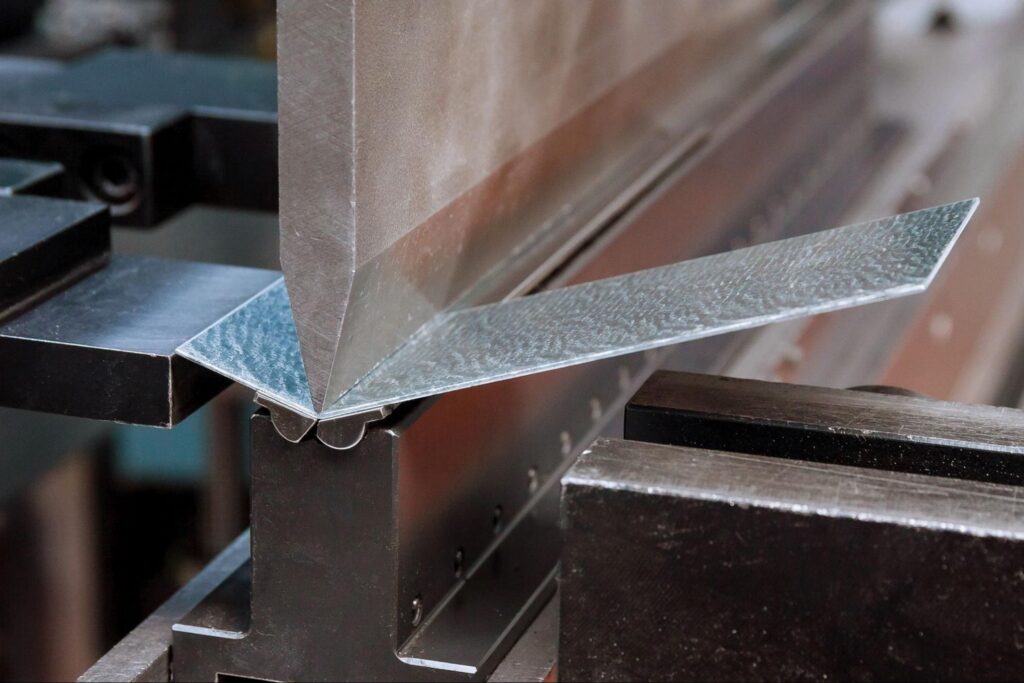

3. Sheet Metal Fabrication
Sheet metal fabrication transforms flat metal sheets into finished components through processes such as laser cutting, punching, bending, forming, and welding. It is commonly used for prototypes that will eventually be manufactured from sheet materials.
If your project involves fabricated sheet components, you can also explore our article on Sheet Metal Fabrication to understand the complete manufacturing process in greater detail.
Advantages:
- Fast production for flat components
- Cost-effective for low to medium volumes
- Excellent for folded and formed parts
- Compatible with various metals
Limitations:
- Limited to sheet material designs
- Complex three-dimensional geometries may require additional processes
- Design must consider bend radii and manufacturing constraints
Best suited for:
- Electrical enclosures
- Equipment housings
- Mounting brackets
- Cabinets and chassis

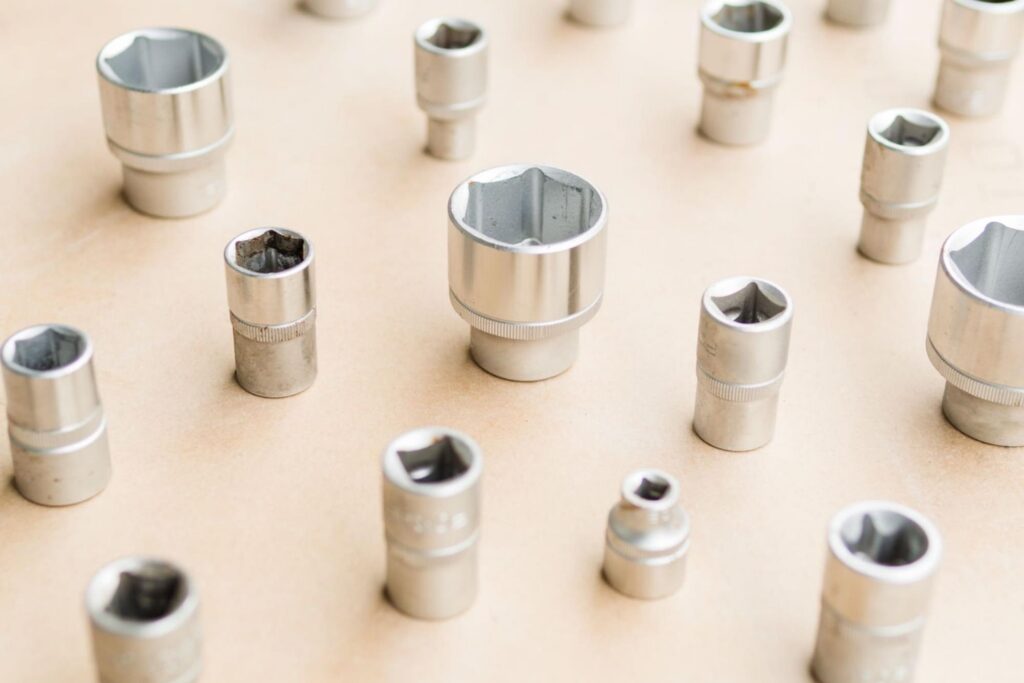

4. Die Casting
Die casting produces metal parts by injecting molten metal into a precision steel mould under high pressure. While it is primarily associated with mass production, it can also be used during later prototype stages when manufacturers need to validate production tooling or bridge the transition to full-scale manufacturing.
Because creating the mould requires significant investment, die casting is generally not the preferred option for early-stage prototypes.
Advantages:
- Excellent repeatability
- High production efficiency
- Consistent part quality
- Good surface finish
Limitations:
- High tooling costs
- Longer initial lead time
- Less suitable for early design iterations
Best suited for:
- Production validation
- Bridge production
- High-volume manufacturing

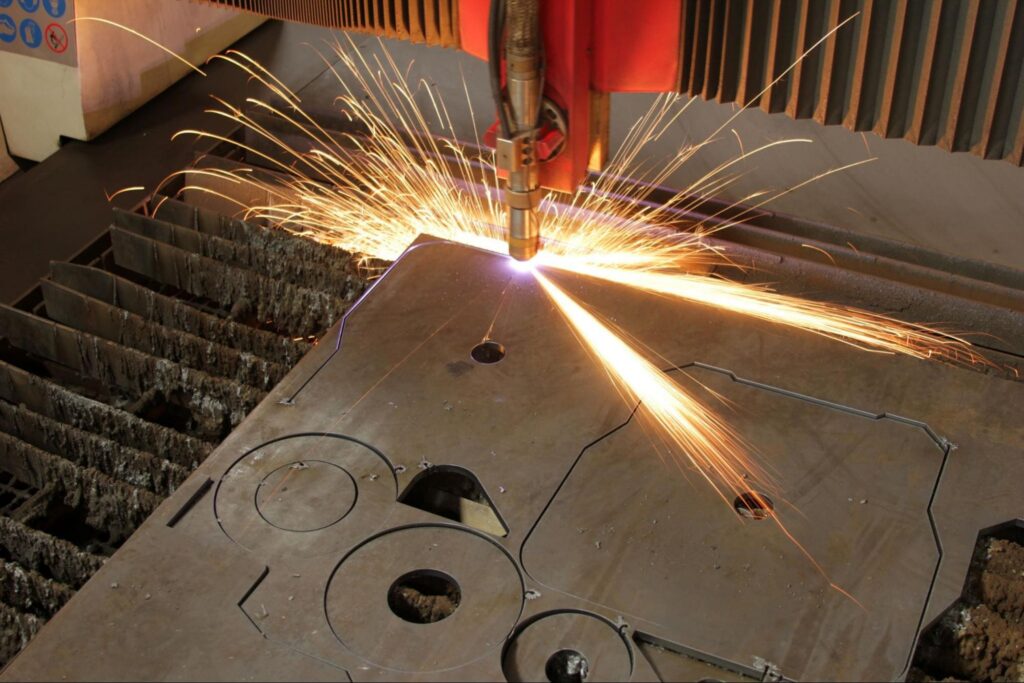

5. Laser Cutting
Laser cutting uses a focused laser beam to cut flat metal sheets with exceptional precision. It is widely used to create prototype parts quickly while maintaining accurate dimensions and clean edges.
Laser cutting is often combined with bending or welding during sheet metal fabrication to produce complete assemblies.
Advantages:
- High cutting accuracy
- Fast turnaround
- Minimal material waste
- Clean cut edges
Limitations:
- Primarily suitable for flat materials
- Heat may affect certain material properties
- Thickness limitations depending on the material
Best suited for:
- Flat components
- Precision sheet metal parts
- Enclosures
- Structural brackets

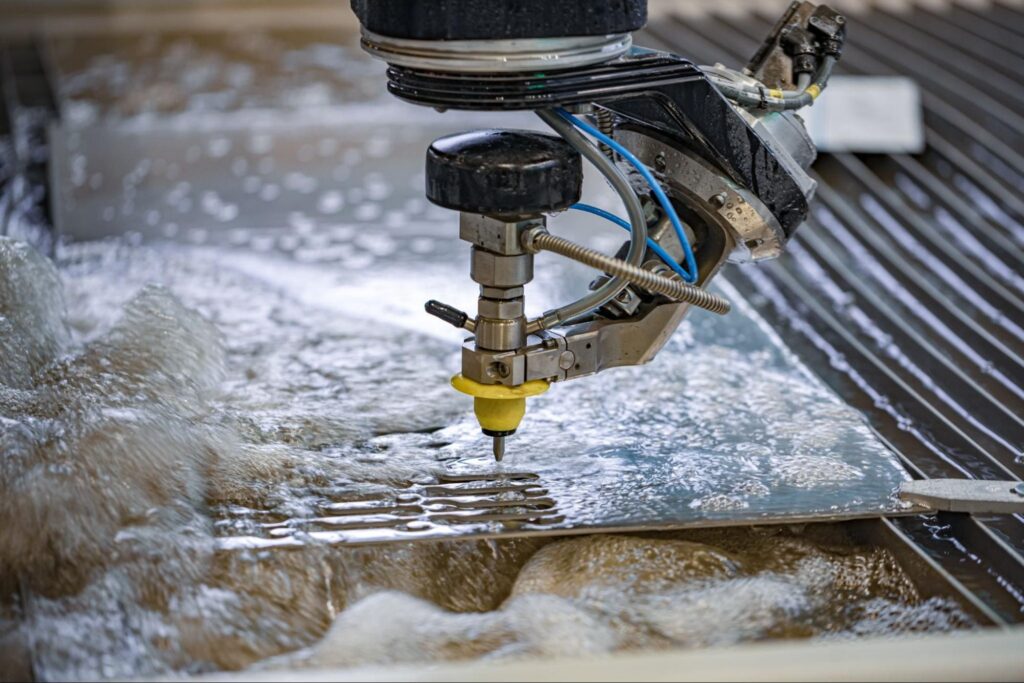

6. Waterjet Cutting
Waterjet cutting uses a high-pressure stream of water, often mixed with abrasive particles, to cut metal without generating heat. Unlike laser cutting, it produces no heat-affected zone, making it suitable for materials that may distort under high temperatures.
It is commonly used for thicker materials and heat-sensitive applications.
Advantages:
- No heat-affected zone
- Suitable for thick materials
- Produces smooth cut edges
- Compatible with many metals
Limitations:
- Slower than laser cutting for thin materials
- Higher operating costs
- Typically requires additional finishing for certain applications
Best suited for:
- Thick metal plates
- Heat-sensitive materials
- Precision industrial components
Quick Comparison of Metal Prototype Fabrication Techniques
| Fabrication Technique | Speed | Accuracy | Relative Cost | Best For | Suitable Materials |
| CNC Machining | High | Excellent | Medium | Functional prototypes and precision parts | Aluminium alloys, Stainless steel, Mild steel, Tool steel, Brass, Copper, ABS, Polycarbonate, Nylon, POM , PEEK, PMMA |
| DMLS | Medium | High | High | Complex geometries and lightweight designs | Stainless steel, Aluminum, Inconel, Titanium, Cobalt Chrome |
| Sheet Metal Fabrication | High | High | Low to Medium | Enclosures, brackets, panels | Stainless Steel, Aluminium, Mild Steel |
| Die Casting | Low (initially) | Excellent | High | Production validation and high-volume manufacturing | Aluminium, zinc, magnesium |
| Laser Cutting | High | Excellent | Low | Flat sheet components | Stainless steel, mild steel, aluminium, brass, copper |
| Waterjet Cutting | Medium | High | Medium | Thick materials and heat-sensitive parts | Stainless steel, aluminium, steel, copper, brass |
Surface Finishing Options for Prototype Metal Fabrication
Surface finishing enhances a prototype’s appearance, durability, and performance. Common finishing options include:
| Surface Finish | Purpose |
| Bead Blasting | Produces a smooth, matte finish |
| Anodizing | Improves corrosion and wear resistance |
| Powder Coating | Provides a durable protective coating with colour options |
| Polishing | Creates a smooth or mirror-like finish |

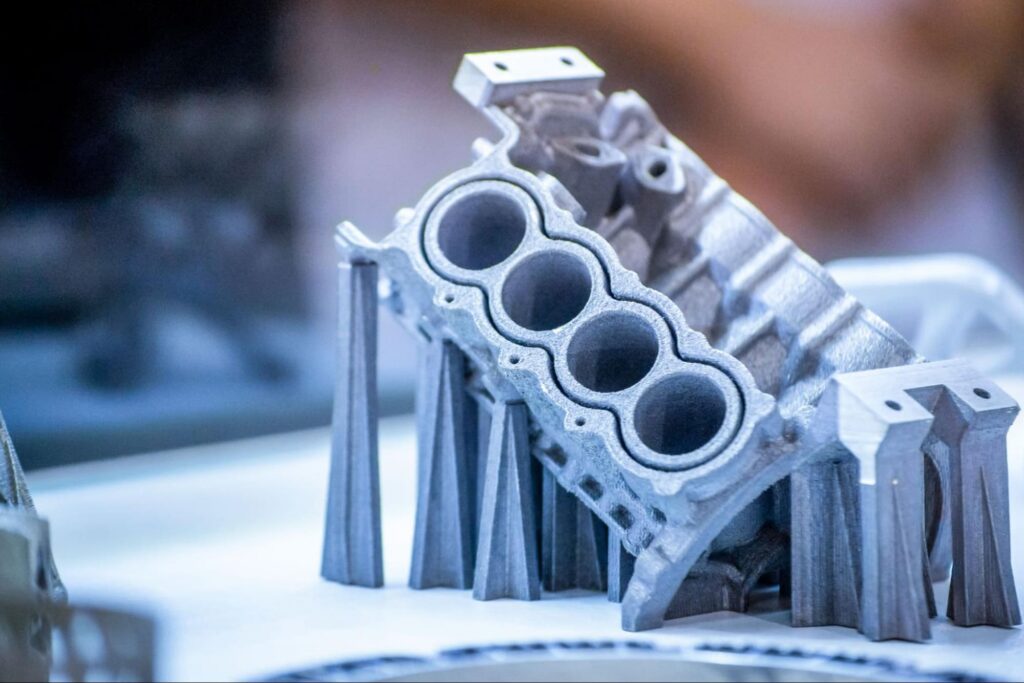

How to Choose the Most Suitable Prototype Metal Fabrication Technique
Selecting the right prototype metal fabrication technique involves more than choosing the fastest or most affordable option. The best process depends on your design requirements, performance expectations, production goals, and project timeline.
Before deciding on a fabrication method, ask the following questions:
- Will the prototype need to fit within an assembly?
If the component must integrate with other parts, dimensional accuracy and tight tolerances become critical. Processes such as CNC machining are often preferred because they consistently produce highly accurate parts that closely match production specifications.
- Will the part be exposed to loads, heat, or harsh operating conditions?
Functional prototypes should replicate the performance of the final product as closely as possible. Consider whether the component will experience mechanical stress, vibration, elevated temperatures, or corrosive environments, then select both the material and fabrication process accordingly.
- Is the design likely to change?
If multiple design revisions are expected, choose a fabrication method that supports rapid iterations with minimal setup costs. CNC machining and DMLS are both well suited for low-volume prototypes that may require frequent modifications throughout product development.
- How quickly is the prototype required?
Project timelines often influence the manufacturing method. CNC machining, laser cutting, and sheet metal fabrication generally offer faster turnaround for many applications, while processes requiring tooling, such as die casting, typically involve longer lead times.
- What level of accuracy is required?
Not every prototype requires production-level tolerances. Determine whether the prototype is intended for visual evaluation, functional testing, or production validation, then choose a process capable of achieving the necessary precision without unnecessary manufacturing costs.
- What is the available budget?
Cost should be evaluated alongside performance and manufacturing requirements. While some methods have higher upfront costs, they may reduce overall development expenses by producing more representative prototypes or shortening the design validation process.
Challenges of Prototype Metal Fabrication
Although prototype metal fabrication offers significant advantages, it is not without its limitations. Understanding these challenges helps businesses choose the most appropriate fabrication method and plan their development budget more effectively.
- Higher costs for low-volume production: Unlike plastic prototypes, metal fabrication often involves specialised machinery, skilled labour, and premium materials. Certain processes, particularly die casting, also require tooling investments that may not be economical for small production runs.
- Requires skilled engineering expertise: Producing high-quality metal prototypes requires experience in material selection, machining strategies, tolerancing, and manufacturing processes. Poor design decisions can lead to unnecessary costs, longer lead times, or prototypes that do not accurately represent the final product.
- Material and process limitations: Not every fabrication process is suitable for every metal or product geometry. Some materials are more difficult to machine, while others require specialised equipment or additional post-processing to achieve the desired properties.
- Longer lead times for certain processes: Although rapid prototyping technologies have significantly reduced manufacturing times, some methods still require additional preparation, tooling, heat treatment, or surface finishing before the prototype is ready for testing.
- Multiple design revisions may increase costs: Product development is often an iterative process. While design revisions help improve the final product, producing multiple prototype versions can increase both development costs and project timelines if changes are not managed efficiently.
Best Practices for Prototype Metal Fabrication
A well-planned prototype can reduce costs, speed up development, and make the transition to production much smoother. Here are a few best practices to keep in mind:
1. Design with Manufacturing in Mind
Apply Design for Manufacturability (DFM) principles to simplify production without compromising performance. This includes using standard features, avoiding unnecessary tight tolerances, and reducing complex machining where possible.
2. Choose the Right Material
Select materials based on the prototype’s intended function, operating environment, and performance requirements, rather than cost alone.
3. Use the Right Fabrication Process
Different fabrication methods are suited to different goals. Choose a process that matches whether the prototype is for visual evaluation, functional testing, fit verification, or production validation.
4. Plan for Post-processing
Consider any finishing processes that may be needed before the prototype is ready for testing or presentation.
5. Work with Your Manufacturer Early
Involving your fabrication partner during the design stage can help identify potential issues, improve manufacturability, and reduce costly revisions later in the project.
Conclusion
Getting a metal product right the first time in full production is rare, which is why prototyping is such a critical step. By building and testing a prototype first, manufacturers can refine designs, improve performance, and move into production with greater confidence.
As an experienced prototyping company, ARRK Asia supports prototype metal fabrication alongside a wide range of prototyping solutions for various industries. From design optimisation and precision metal prototypes to rapid manufacturing, our team can help bring your product from concept to validation. Contact us today to discuss your project and request a quotation.
Frequently Asked Questions
1. What is prototype fabrication?
Prototype fabrication is the process of creating an early physical version of a product to evaluate its design, fit, function, and manufacturability before full-scale production. It enables designers and engineers to test concepts, identify potential issues, and refine the product before investing in production tooling.
2. What are the types of metal fabrication?
The three primary types of metal fabrication are cutting, forming, and assembling. In prototype metal fabrication, these processes are often used individually or in combination to create functional prototypes for design validation and product testing.
- Cutting removes material to create the required shape using processes such as laser cutting, waterjet cutting, and CNC machining.
- Forming reshapes metal without removing material through techniques such as die casting, punching, and bending
- Assembling joins multiple metal components together using methods such as welding, fastening, brazing, soldering, or adhesive bonding to create the final product.
3. What is the best method for prototype metal fabrication?
There is no single best method, as the ideal fabrication technique depends on your product requirements. CNC machining is often the preferred choice for high-precision functional prototypes because it delivers excellent dimensional accuracy and surface finish. DMLS is better suited for complex geometries, while sheet metal fabrication is ideal for enclosures, brackets, and formed components.
4. What is the fastest prototype metal fabrication method?
For many projects, CNC machining, laser cutting, and sheet metal fabrication offer the shortest lead times because they require little or no tooling. DMLS can also produce complex parts quickly, particularly when conventional machining would require multiple setups.
5. Is CNC machining better than DMLS?
Neither process is universally better. CNC machining offers superior accuracy, tighter tolerances, and smoother surface finishes, making it suitable for functional prototypes. DMLS excels at producing lightweight structures and complex internal geometries that are difficult to manufacture using conventional machining.
6. How accurate is prototype metal fabrication?
Accuracy varies depending on the manufacturing process. CNC machining generally achieves the tightest tolerances, while DMLS may require post-processing for critical dimensions. Choosing the appropriate fabrication method depends on the precision required for the application
7. How long does prototype metal fabrication take?
Lead times depend on factors such as part complexity, material availability, fabrication method, and post-processing requirements. Simple CNC machined or sheet metal prototypes may be completed within a few days, while more complex projects involving multiple manufacturing processes or specialised finishes may require longer.
