What is Rapid Prototyping?

Introduction

Turning an idea into a successful product rarely happens on the first attempt. Every new product goes through multiple rounds of testing, evaluation, and refinement before it’s ready for the market. This is where rapid prototyping plays a crucial role, allowing designers, engineers, and product teams to quickly turn concepts into physical or digital models for validation.

This guide explains what rapid prototyping is, how the process works, the different types of prototypes and manufacturing methods available, and how businesses can choose the right approach to accelerate product development.

What is a Prototype?

A prototype is an early version of a product built before mass production. It allows businesses to test the product’s design, functionality, usability, and manufacturability, identify potential issues, and make improvements before the final version is produced.

What is Rapid Prototyping?

Rapid prototyping is the process of quickly creating a physical or digital representation of a product so that its design, functionality, usability, or manufacturability can be evaluated before full-scale production.

The objective is not necessarily to create a finished product, but to learn from each iteration and refine the product design and functionality before manufacturing.

When Should You Consider Rapid Prototyping?

Rapid prototyping is most valuable when you need to validate ideas quickly before committing to production.

Consider using rapid prototyping to:

• Evaluate and compare product concepts
• Test functionality before investing in tooling
• Validate ergonomics, dimensions, and component fit
• Gather feedback from customers and stakeholders
• Demonstrate concepts to investors or decision-makers
• Identify design, engineering, or manufacturing issues early
• Reduce development risks and shorten time to market
• Improve existing products through iterative design

Rapid prototyping is especially useful for products with complex designs, customised components, or innovative features. By identifying and resolving issues early, businesses can reduce development costs and increase the likelihood of a successful product launch.

Benefits of Rapid Prototyping

• Faster product development: Shorten development cycles by testing and refining ideas earlier, helping you bring products to market faster.
• Lower development costs: Resolve design issues before production to minimise costly redesigns, tooling changes, material waste, and manufacturing delays.
• Better product quality: Evaluate form, fit, functionality, ergonomics, and assembly early to deliver a more refined final product.
• Improved collaboration: Give designers, engineers, manufacturers, and stakeholders a shared prototype that makes feedback and decision-making more efficient.
• Earlier customer validation: Gather real user feedback before production to ensure the product meets customer needs and expectations.
• Reduced project risk: Confirm that designs, materials, and manufacturing processes work as intended before committing to full-scale production.
• Greater design flexibility: Explore multiple concepts, compare alternatives, and refine ideas without the time and cost of traditional manufacturing.
• Smoother manufacturing planning: Identify production challenges early so you can streamline assembly, improve manufacturability, and avoid costly surprises during production.

What Industries Use Rapid Prototyping?

Rapid prototyping is widely used across many industries, including:

Industry	Typical Applications
Product Design	Consumer products, household appliances, electronics
Manufacturing	Production validation, tooling verification
Automotive	Interior components, fixtures, functional testing
Aerospace	Lightweight parts, engineering validation
Medical	Surgical guides, medical devices, prosthetics
Industrial Equipment	Mechanical assemblies, machine components
Architecture	Building models and concept visualisation

Regardless of the method used, the objective of rapid prototyping remains the same: to test, improve, and validate concepts before moving into production.

Rapid Prototyping vs Regular Prototyping

Although prototyping and rapid prototyping both involve creating early versions of a product, they differ in how prototypes are developed. The table below highlights the key differences between the two approaches:

Feature	Rapid Prototyping	Regular Prototyping
Development Speed	Hours to days	Weeks to months
Cost per Iteration	Lower	Higher
Design Changes	Easy to modify	More time-consuming
Number of Iterations	Multiple	Usually fewer
Best For	Early design validation and continuous improvement	Final verification before production
Time to Market	Faster	Slower

Which Approach Should You Choose?

The best approach depends on your product, goals, and production requirements.

Choose rapid prototyping if you need to:

• Explore and refine design concepts quickly
• Validate functionality and manufacturability
• Gather user feedback early
• Reduce development risks
• Accelerate time to market
• Produce anything from simple concept models to high-fidelity functional prototypes

Choose traditional prototyping if you need to:

• Validate production tooling or manufacturing processes
• Test production-grade materials
• Simulate full-scale production before manufacturing begins

In many projects, both approaches are used together. Teams often use rapid prototyping throughout product development, with the final rapid prototype becoming the production-ready design. In some cases, particularly for low-volume production, custom manufacturing, or niche applications, a rapid prototype can even serve as the final product.

Types of Rapid Prototyping

Rapid prototyping is not limited to a single technique. Different types of prototypes serve different purposes throughout product development. Understanding these different types helps teams choose the most appropriate prototype for each stage of development:

1. Proof-of-Concept Prototype

A proof-of-concept (PoC) prototype is created to validate whether a product idea, concept, or technical approach is feasible before further development. It helps teams test key assumptions, explore potential solutions, and assess viability with minimal time and investment.

PoC prototypes are primarily used internally by design and engineering teams to evaluate technical feasibility and determine whether an idea should progress to more detailed design and prototype development.

2. Looks-like (Aesthetic) Prototype

A looks-like (aesthetic) prototype represents the final product’s appearance without fully replicating its functionality. It helps teams evaluate the product’s visual design, ergonomics, user interaction, and colour, material, and finish (CMF) before engineering is finalised.

During development, this type of prototype often moves back and forth between digital and physical models as designers refine the product’s form and user experience.

These prototypes are commonly used to assess:

• Shape and size
• Colour, material, and finish (CMF)
• Branding and visual appeal
• Ergonomics
• User interaction

Looks-like prototypes are often used for design reviews, pitching, customer feedback, and marketing demonstrations.

3. Works-Like (Functional) Prototype

A works-like (functional) prototype is designed to test whether the product performs as intended. Unlike a looks-like prototype, it includes working components or mechanisms that simulate the final product’s behaviour. Because the focus is on functionality, these prototypes are often designed and tested as individual sub-units before being integrated into the complete product.

Functional prototypes are commonly used to evaluate:

• Mechanical movement
• Electrical systems
• User interaction
• Software integration
• Product performance

These prototypes play an important role in engineering validation by identifying technical issues before full product integration.

4. Engineering Prototype

An engineering prototype is a high-fidelity prototype built to validate the product’s technical performance before manufacturing. It closely resembles the final product in terms of dimensions, materials, components, and functionality, allowing engineers to identify and resolve design issues under real-world conditions.

Engineering prototypes are commonly used to verify:

• Structural strength and durability
• Mechanical and electrical performance
• Component integration and compatibility
• Safety and regulatory requirements
• Design for Manufacturability (DFM), ensuring the product can be manufactured efficiently, consistently, and cost-effectively at scale.

The Rapid Prototyping Process

1. Define the product requirements: Identify the problem the product will solve, target users, core functionality, technical requirements, budget, timeline, and success criteria.
2. Develop the initial design: Create sketches, 3D CAD models, engineering drawings, or digital wireframes to translate ideas into a prototype-ready design.
3. Build the prototype: Produce a physical or digital prototype using suitable methods such as 3D printing, CNC machining, vacuum casting, or sheet metal fabrication.
4. Test and evaluate: Assess the prototype’s functionality, performance, usability, ergonomics, structural integrity, appearance, and overall user experience.
5. Gather feedback: Collect input from stakeholders, including customers, designers, engineers, manufacturing teams, and other project stakeholders, to identify opportunities for improvement.
6. Refine the design: Update the prototype based on testing and feedback by improving dimensions, ergonomics, components, manufacturability, materials, or usability.
7. Repeat as needed: Continue testing and refining until the prototype meets the required design, engineering, and manufacturing objectives.
8. Prepare for manufacturing: Finalise engineering drawings, material specifications, manufacturing documentation, Design for Manufacturability (DFM) reviews, and production planning before moving into manufacturing.

Rapid Prototyping Tools and Methods

Rapid prototyping combines digital design software with modern manufacturing technologies to produce prototypes quickly and accurately. Depending on the project, multiple methods may be used throughout development. For example, a product may begin as a CAD model, be 3D printed for initial testing, and later be refined using CNC machining for greater precision.

Some of the most common rapid prototyping tools and technologies include:

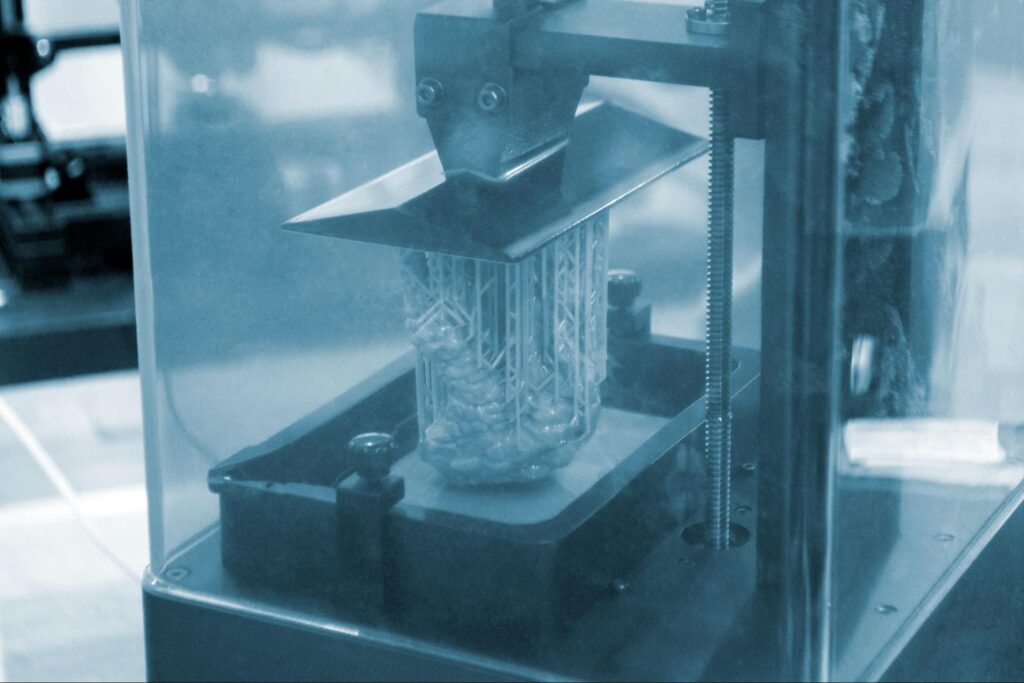

1. 3D Printing

3D printing, also known as additive manufacturing, is one of the most widely used rapid prototyping methods.

It creates parts by building them layer by layer from digital design files, making it ideal for producing complex geometries without specialised tooling.

Common applications include:

• Product concept models
• Functional prototypes
• Engineering validation
• Custom parts
• Medical devices

Advantages:

• Fast turnaround
• Minimal material waste
• Complex designs are easier to produce
• No tooling required
• Cost-effective for low-volume prototypes

Limitations:

• Surface finish may require post-processing
• Material choices can be limited depending on the technology
• Large parts may take longer to print

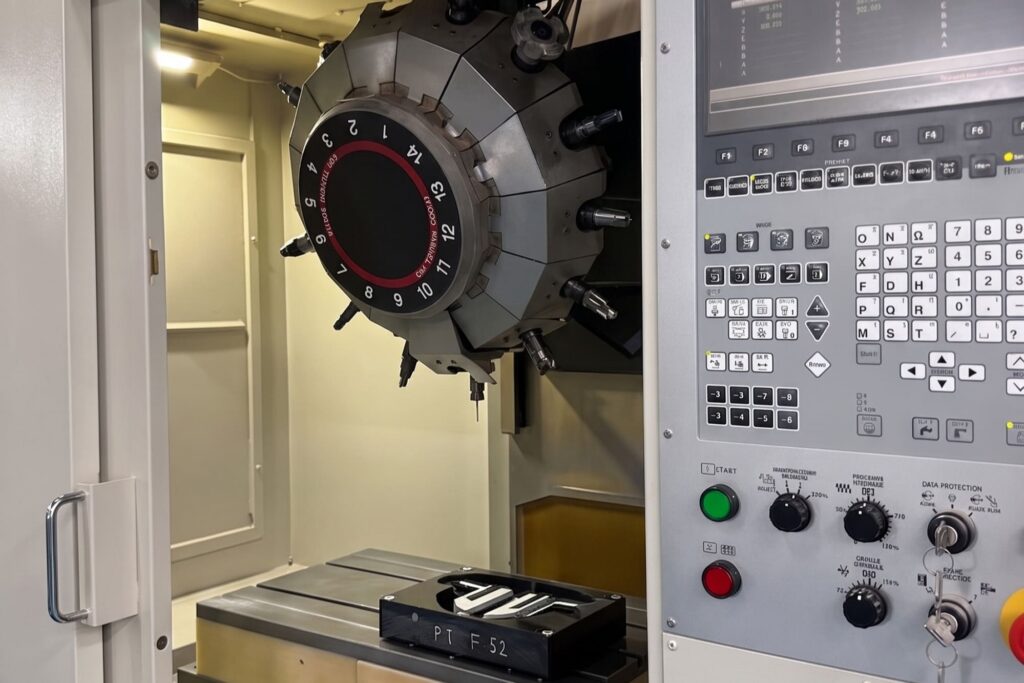

2. CNC Machining

CNC machining removes material from a solid block using computer-controlled cutting tools.

Unlike 3D printing, it is a subtractive manufacturing process that produces highly accurate parts using production-grade materials.

It is commonly used when prototypes require:

• Tight tolerances
• High strength
• Production materials
• Excellent surface finish

Advantages:

• High precision
• Wide material compatibility
• Strong functional parts
• Excellent dimensional accuracy

Limitations:

• More material waste than additive manufacturing
• Longer setup times for complex parts
• Higher cost for intricate geometries

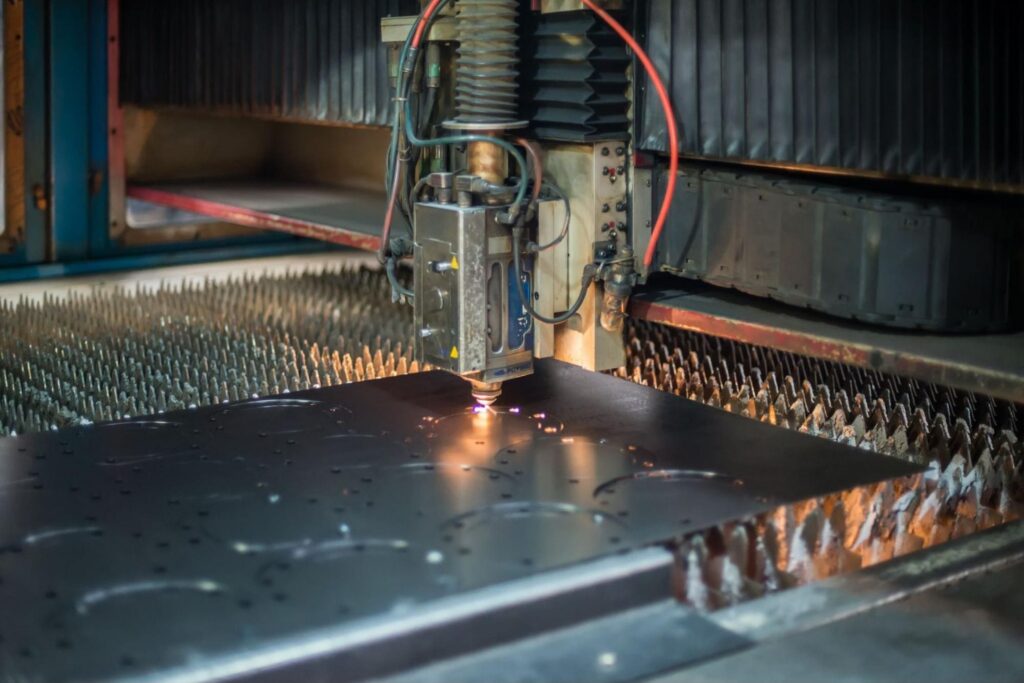

3. Laser Cutting

Laser cutting uses a high-powered laser to cut or engrave flat materials with exceptional accuracy.

Common applications include:

• Acrylic components
• Sheet metal parts

Laser cutting offers a fast and economical solution for flat or sheet-based designs.

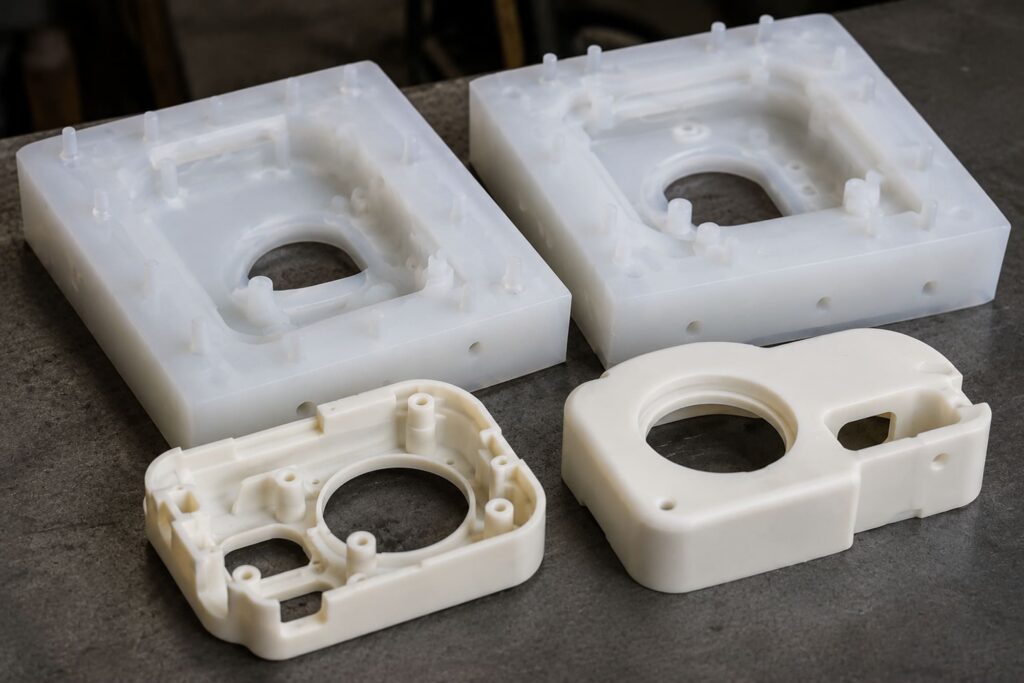

4. Vacuum Casting

Vacuum casting creates small batches of high-quality plastic parts by pouring liquid resin into silicone moulds under vacuum pressure.

Because it produces parts with finishes similar to injection moulding, vacuum casting is often used before investing in production tooling.

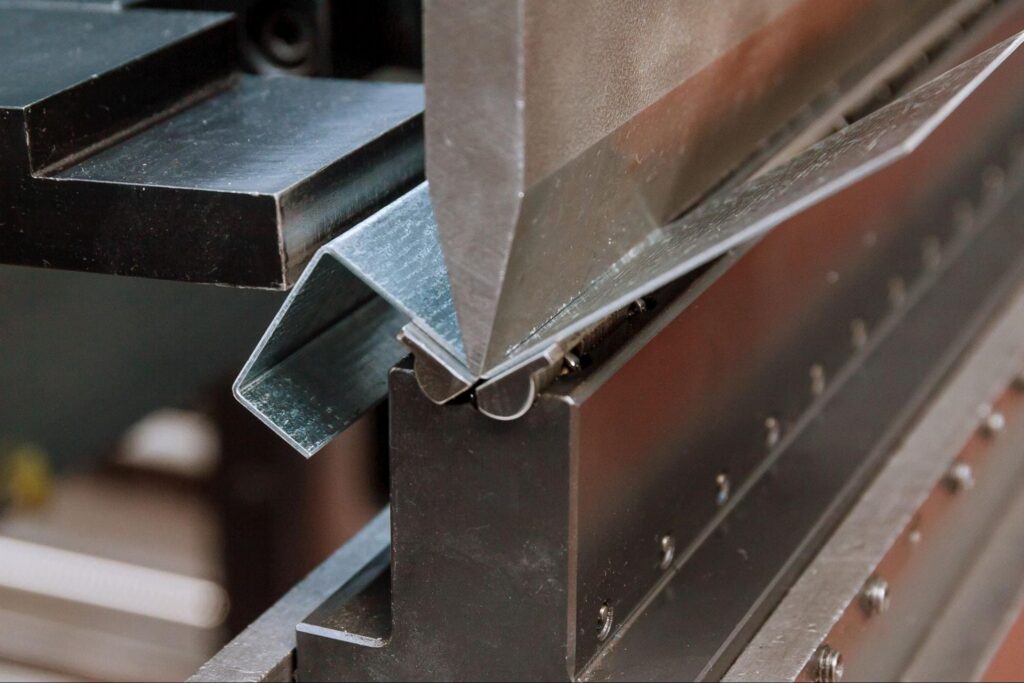

5. Sheet Metal Fabrication

Products that use metal enclosures or structural components often require sheet metal prototyping.

Processes may include:

• Laser cutting
• Bending
• Punching

These prototypes help verify fit, assembly, and manufacturability before production.

Comparison of Rapid Prototyping Methods

Method	Best For	Materials	Strengths
3D Printing	Early concepts, functional prototypes	Plastics & resins	Fast, flexible, low tooling cost
CNC Machining	High-precision functional parts	Metals & plastics	Excellent accuracy and strength
Laser Cutting	Flat components and enclosures	Acrylic & sheet metal	Fast and cost-effective
Vacuum Casting	Low-volume plastic parts	Polyurethane resins	Production-like appearance
Sheet Metal Fabrication	Metal assemblies	Steel, aluminium, stainless steel	Suitable for production validation

Tips for Effective Rapid Prototyping

Rapid prototyping is most effective when each iteration has a clear purpose. These best practices can help you achieve better results throughout the development process.

1. Start with clear objectives: Define what you want to validate, whether it’s functionality, usability, appearance, or manufacturability.
2. Build only what you need: Focus on the features required for testing instead of replicating the entire product.
3. Choose the right materials: Select materials that match your testing objectives, whether for visual evaluation, functional testing, or production validation.
4. Test with real users: Gather feedback from end users to identify usability issues and opportunities for improvement.
5. Iterate quickly: Make small improvements, test frequently, and refine the design based on each round of feedback.
6. Document each iteration: Keep track of design changes, test results, and key findings to support future development.
7. Collaborate across teams: Involve designers, engineers, manufacturers, and other stakeholders to identify issues early.
8. Know when to stop: Move to production once the prototype consistently meets your technical, user, and business requirements.

Common Challenges in Rapid Prototyping and Solutions

Like any product development process, rapid prototyping comes with its own challenges. Being aware of these potential issues can help you make better decisions and get more value from each prototype:

Challenge	Why It Happens	Solution
Choosing the wrong prototyping method	The selected process does not match the project’s requirements.	Select the prototyping method based on the purpose, materials, accuracy, and budget.
Excessive iterations	Teams continue making minor changes without reaching a final decision.	Set milestones and establish clear criteria for moving to the next stage.
Material limitations	Prototype materials may not accurately represent production materials.	Use production-grade materials when functional or performance testing is required.
Cost overruns	Multiple redesigns or complex prototypes increase development costs.	Prioritise the most critical features and validate them first.
Communication gaps	Different teams interpret requirements differently.	Share prototype results regularly and encourage collaboration throughout development.
Manufacturing differences	A prototype may be easy to produce but difficult to manufacture at scale.	Conduct Design for Manufacturability (DFM) reviews before finalising the design.

Rapid Prototyping Services vs In-House Rapid Prototyping

Businesses can either develop prototypes in-house or outsource the work to a specialised rapid prototyping service provider. The right approach depends on factors such as your budget, available expertise, project complexity, and production requirements.

The comparison below highlights the key differences to help you determine which option best suits your business.

Factor	In-House	Outsourced Service
Initial Investment	High	Low
Equipment Ownership	Yes	No
Technical Expertise Required	Yes	Minimal
Prototype Turnaround	Very fast for routine projects	Depends on provider and shipping
Material Options	Limited by available equipment	Wide range of materials and technologies
Scalability	Limited by internal resources	Highly scalable
Confidentiality	High	Depends on service agreements
Best For	Companies with frequent prototyping needs	Occasional, specialised, or complex projects

Which Option is Right for Your Business?

Choose in-house rapid prototyping if you:

• Prototype frequently
• Have in-house engineering expertise

Choose an outsourced rapid prototyping service if you:

• Only need prototypes occasionally
• Require specialised equipment or manufacturing processes
• Want to avoid investing in expensive machinery

Many businesses adopt a hybrid approach, using in-house resources for early design iterations and outsourcing specialised or production-ready prototypes when additional capabilities are needed.

Future Trends in Rapid Prototyping

Rapid prototyping continues to evolve as new technologies make product development faster, more efficient, and increasingly cost-effective. Here are some of the key trends shaping its future:

• AI-assisted design: Uses artificial intelligence to generate design alternatives, optimise components, identify potential issues early, and speed up design decisions.
• Cloud-based collaboration: Enables teams to review designs, share feedback, and manage revisions in real time, regardless of location.
• Sustainable prototyping: Focuses on recyclable materials, reduced waste, energy-efficient processes, and optimised designs to lower environmental impact and material costs.

Conclusion

Rapid prototyping has changed the way businesses approach product development. Instead of asking “Will this work?” after significant time and resources have been invested, businesses can now ask “How quickly can we validate this?” before committing to production.

By validating ideas earlier, businesses can refine designs, reduce costly changes, and bring products to market more efficiently. As a trusted prototyping company, ARRK Asia supports businesses with rapid prototyping and low-volume production, helping turn concepts into production-ready products. If you’re looking to accelerate your product development, contact us today to discuss the right solution for your project.

Frequently Asked Questions

1. What is the difference between low-fidelity and high-fidelity prototypes?

A low-fidelity prototype is a simple, low-cost model used to explore ideas and gather early feedback. Examples include sketches, paper prototypes, wireframes, and basic mock-ups.

A high-fidelity prototype closely resembles the final product in appearance, functionality, or both. It is typically used for usability testing, engineering validation, and manufacturing preparation.

2. How many prototypes do you need?

There is no fixed number. Most products go through several iterations, with each prototype helping validate different aspects of the design until it is ready for production.

3. How do you create a good prototype?

Start with a clear objective, whether it’s testing appearance, functionality, usability, or manufacturability. Choose the appropriate prototyping method, gather feedback, and refine the design with each iteration.

4. How do I choose the right rapid prototyping method?

The best method depends on your product’s requirements and stage of development.

• 3D Printing: Early concepts and functional prototypes. Fast, flexible, and low tooling cost.
• CNC Machining: High-precision functional parts with excellent accuracy and strength.
• Laser Cutting: Flat components and enclosures with fast, cost-effective production.
• Vacuum Casting: Low-volume rubber parts with a production-like appearance.
• Sheet Metal Fabrication: Metal assemblies for production validation.

5. What is the difference between a rapid prototype, proof of concept (PoC), and minimum viable product (MVP)?

Although these terms are often confused with one another, they serve different purposes during product development.

Aspect	Rapid Prototype	Proof of Concept (PoC)	Minimum Viable Product (MVP)
Purpose	Test design and functionality	Verify technical feasibility	Validate market demand
Target users	Internal teams, engineers, stakeholders	Technical teams	Real customers
Level of completion	Partial or complete model	Focused technical demonstration	Working product with core features
Physical or digital	Both	Usually either	Usually, a functional software or physical product
Main outcome	Refine the product	Confirm the idea can work	Gather customer feedback

A project often starts with a proof of concept, progresses to a rapid prototype, and ends with an MVP to validate the product before full-scale production.
