Selective Laser Sintering (SLS): Process, Pros & Cons

Introduction

Selective Laser Sintering (SLS) has grown in popularity due to its ability to produce complex, high-quality parts quickly and cost-effectively. As an advanced additive manufacturing process, it enables engineers and designers to create durable functional components without the need for traditional tooling.

This article explains what SLS is, highlights its key advantages, and explores its practical applications so you can determine whether it’s the right choice for your project.

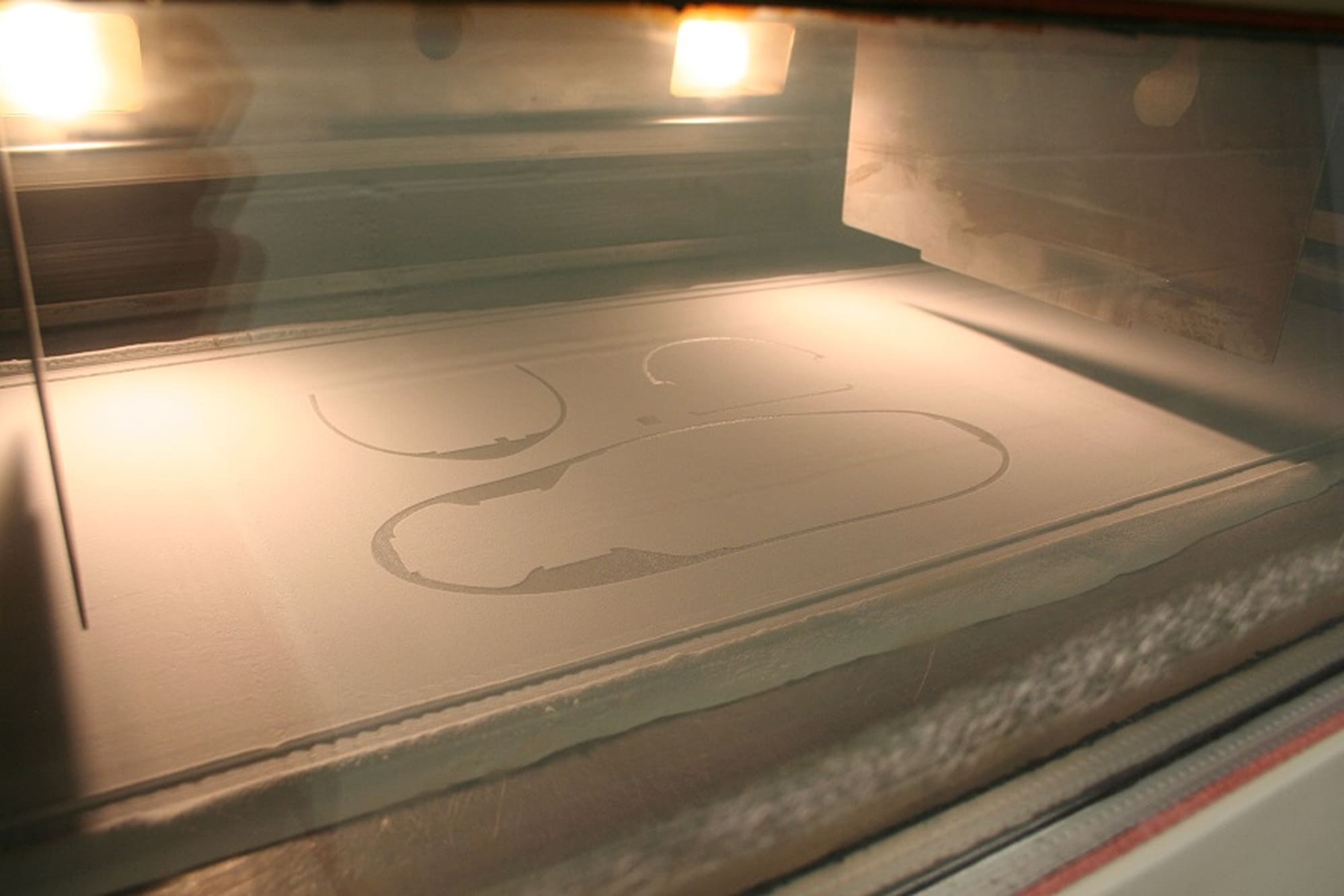

What is Selective Laser Sintering in 3D Printing?

Selective Laser Sintering (SLS), commonly known as SLS 3D printing, is an additive manufacturing process that fuses fine polymer powders. In some specialised applications, metal powders may also be used.  A high-powered laser selectively heats specific regions of each powder layer to create a solid, fully functional part.

Unlike traditional 3D printing methods that stack extruded material, SLS builds parts from individual powder particles. This results in strong, durable components capable of complex geometries.

SLS is particularly suitable for low-volume production, typically under 1,000 units. It allows parts to be tested for fit, function, and performance before progressing to larger-scale manufacturing such as injection moulding.

How Does Selective Laser Sintering Work?

The selective laser sintering process converts powder into fully functional parts through a series of precise steps:

1. CAD Model Preparation

The process begins with a 3D CAD model, which is converted into a printable file and sliced into thin cross-sectional layers. These layers guide the laser throughout the printing process.

2. Powder Preparation

A thin layer of polymer powder is spread evenly across the build platform. The powder bed is then preheated to just below the material’s melting point, reducing the amount of energy required from the laser.

3. Laser Sintering

A high-powered laser selectively scans each layer, fusing the powder particles together based on the digital design. Once a layer is complete, the build platform lowers by approximately 50 to 200 microns, and a new layer of powder is applied. This process repeats until the entire part is built.

4. Cooling

After printing is complete, the build chamber is gradually cooled inside the machine. Controlled cooling helps maintain mechanical properties while reducing internal stresses, warping, and dimensional distortion.

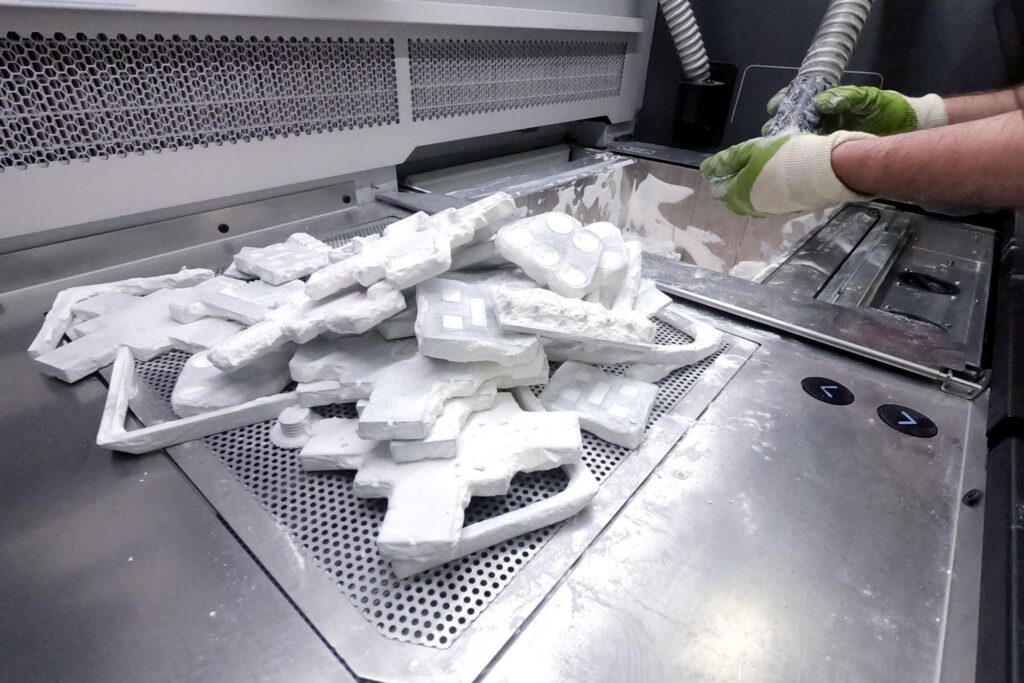

5. Part Removal and Depowdering

Once cooled, the finished parts are removed from the powder bed and cleaned to remove excess unsintered powder. Much of the unused powder can be collected and reused for future builds.

6. Post-Processing

Depending on the application, additional finishing processes may be carried out to improve the part’s appearance, accuracy, or performance.

Types of Selective Layer Sintering Printers

SLS printers range from compact desktop systems to large industrial machines. Each type is designed for different production requirements, offering varying build capacities, productivity, and investment costs. The comparison below highlights the key differences:

Feature	Desktop SLS Printers	Benchtop / Mid-Range SLS Printers	Industrial SLS Printers
Best suited for	Product development, research, education	Design consultancies, growing businesses, low-volume manufacturing	Engineering, manufacturing, production environments
Build volume	Small	Medium	Large
Production capacity	Low	Medium	High
Cost	Lowest	Moderate	Highest
Key advantages	Compact, affordable, suitable for in-house prototyping	Good balance of cost, speed, and capacity	High productivity, consistent quality, supports large and complex builds
Common applications	Functional prototypes, concept validation	Rapid prototyping, product development, small-batch production	Rapid prototyping, low-volume production, end-use parts

Factors to Consider When Choosing an SLS Printer

• Material Compatibility: Different SLS printers support different materials. Choosing a printer with the right material compatibility provides greater flexibility for both current and future applications.
• Build Chamber Configuration: The size and shape of the build chamber determine the maximum part size and the number of components that can be printed in a single build. Efficient part nesting helps maximise material usage, improve productivity, and reduce the cost per part.
• Single-Laser vs Multi-Laser Systems: SLS printers may use either a single laser or multiple lasers to fuse the powder. Single-laser systems are suitable for lower-volume production and prototyping, while multi-laser systems process different areas of the build chamber simultaneously, reducing print times and increasing productivity.
• Software and Automation: Advanced software helps optimise part orientation and nesting, monitor the printing process, and maintain consistent build quality. Automation features also reduce manual intervention, improving efficiency and repeatability across multiple print jobs.
• Throughput and Turnaround Time: A printer’s overall productivity depends on more than its print speed. Heating and cooling times, build preparation, and job changeovers all contribute to the total production cycle. Businesses with demanding production schedules should consider the complete turnaround time when comparing SLS printers.

Types of Selective Laser Sintering Materials & Their Properties

Choosing the right material is critical for part performance. Selective laser sintering materials include a range of polymers and elastomers suited to different functional requirements:

Material	Flexibility	Strength / Durability	Heat Resistance	Common Applications
Nylon PA	Medium	High	Moderate	Functional prototypes, housings, brackets and mechanical components
Glass-Filled Nylon	Low	Very High (stiff, reinforced)	High	Structural prototypes, brackets, fixtures and rigid components
Nylon EX	Medium	High	Moderate	Functional prototypes, housings and mechanical components
TPU (Thermoplastic Polyurethane)	High (rubber-like)	Medium	Moderate	Flexible components, seals, gaskets, grips and elastomeric parts

Advantages and Disadvantages of Selective Laser Sintering (SLS)

Before choosing SLS for your project, it is important to understand its key benefits and potential limitations. Knowing the advantages and disadvantages of selective laser sintering ensures you select the most suitable manufacturing method for your parts:

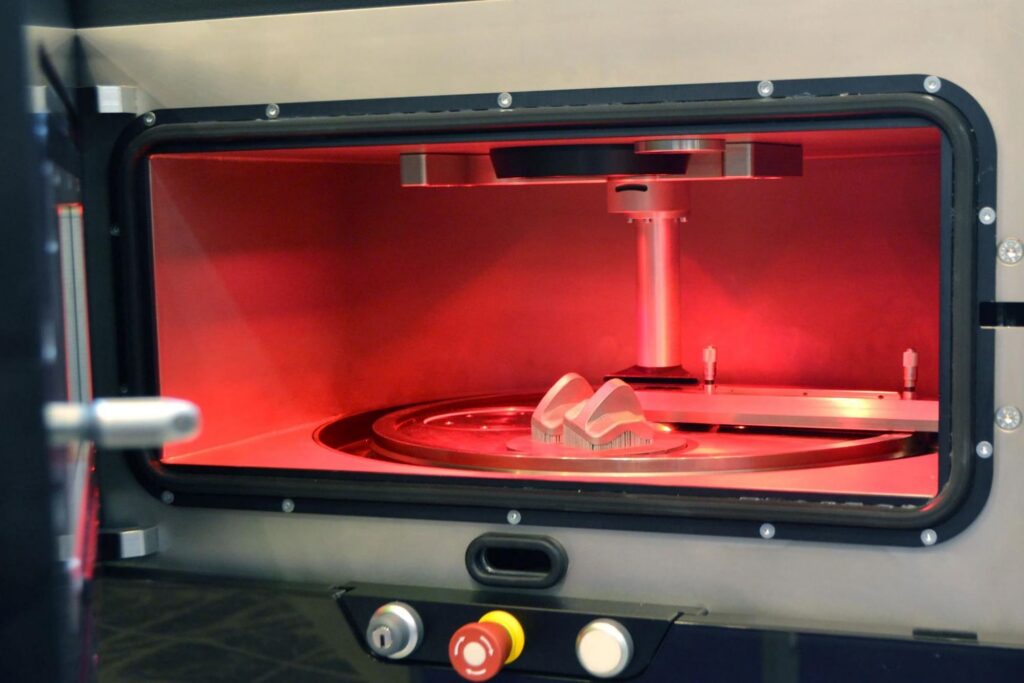

Advantages of Selective Laser Sintering (SLS)

1. Reduced Material Waste: No moulds or dies are required, reducing tooling costs and minimising material scrap during production
2. Faster Production Cycles: Parts are produced directly from digital CAD files, enabling rapid prototyping and quicker design iterations
3. Cost-Effective for Low-Volume Production: Ideal for functional prototypes and small batch manufacturing without the need for expensive tooling investment
4. High Build Efficiency: SLS printers can produce multiple parts in a single build, helping maximise build chamber capacity, increases productivity, and helps lower the cost per part.
5. No Support Structures Required: Because the surrounding powder supports the part during printing, there is no need to design or remove support structures, saving time while enabling more complex designs.
6. Greater Design Freedom: Enables intricate geometries, internal channels, lattice structures, and interlocking components that are difficult or impossible to manufacture using traditional methods.
7. Excellent Layer Adhesion: The sintering process creates strong bonds between layers, resulting in durable parts with consistent mechanical properties.
8. Higher Strength Than FDM: SLS parts generally offer better tensile strength and more uniform mechanical properties than FDM-printed parts. While they are not as strong as injection moulded components due to microscopic porosity, they are suitable for functional testing and end-use applications.

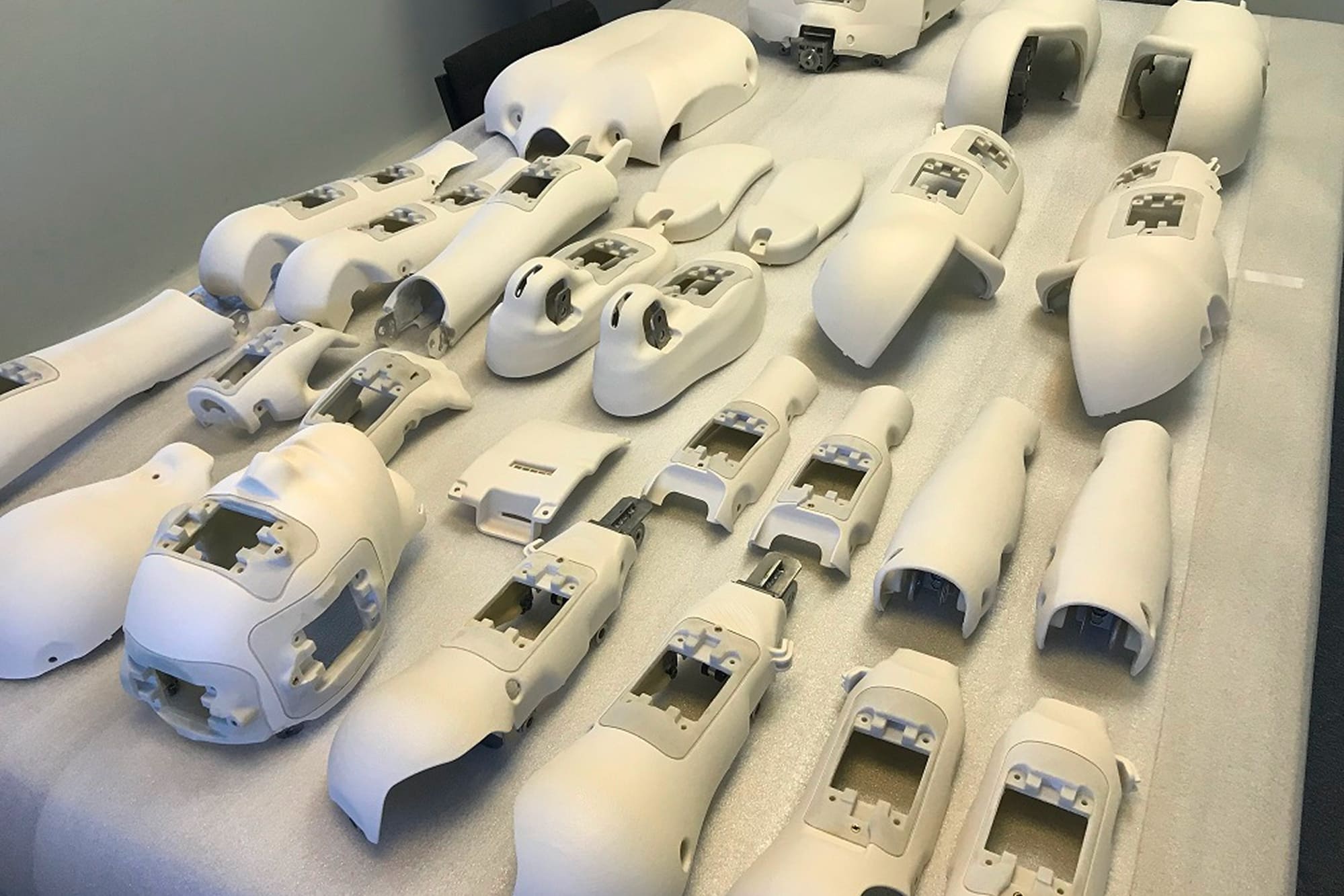

Disadvantages of Selective Laser Sintering (SLS)

1. Surface Texture: Parts often have a slightly grainy surface due to the powder-based process, which may require post-processing for cosmetic finishes
2. Dimensional Changes: Minor shrinkage or warping can occur during cooling, particularly in larger or flat geometries
3. Material Limitations: Most SLS systems primarily use polymer powders, so applications requiring metals or specialised materials may require alternative technologies
4. Long Cooling Time: SLS parts require a controlled cooling period after printing to prevent warping and dimensional distortion. This extends the overall production time, particularly for larger or thicker components.

Common SLS Post-Processing Methods

Although SLS parts can often be used straight from the printer, post-processing can improve their appearance, durability, accuracy, and overall performance. Depending on the application, one or more of the following finishing methods may be used.

Some of the most common SLS post-processing methods include:

1. Depowdering

Depowdering is the first step after printing, where excess unsintered powder is removed using brushes, compressed air, or automated cleaning systems. This reveals the finished part, prepares it for any additional finishing, and allows unused powder to be reused in future builds.

2. Bead Blasting

Bead blasting removes any remaining powder while creating a cleaner, more uniform matte finish. It also helps smooth minor surface imperfections, making parts more suitable for engineering evaluations, customer presentations, or further finishing processes such as dyeing or coating.

3. Dyeing

Dyeing adds colour to SLS parts without affecting their dimensions or mechanical properties. Unlike paint, the dye penetrates the material, creating a more durable finish. It is commonly used to improve appearance or distinguish between different parts and assemblies.

4. Painting and Coating

Painting and protective coatings are applied when additional protection or a premium appearance is required. Besides enhancing aesthetics, coatings can improve resistance to UV exposure, chemicals, moisture, and everyday wear, making them suitable for functional and end-use parts.

5. Machining

Machining is used to achieve tighter tolerances or add precision features that cannot be produced directly during printing. Common operations include drilling, tapping threaded holes, milling, and finishing critical surfaces to meet engineering or assembly requirements.

6. Polishing

Polishing reduces surface roughness to create a smoother, more refined finish. Depending on the required appearance, this may involve mechanical polishing or chemical smoothing, resulting in improved aesthetics, easier cleaning, and reduced friction for certain applications.

Every prototype has unique finishing requirements. From surface finishing to functional enhancements, our team at ARRK Asia can help you choose the right prototype finishing solution for your application.

Applications of Selective Laser Sintering (SLS)

SLS is widely used across industries that require durable, complex, and precisely engineered components. Its ability to create intricate geometries without support structures makes it ideal for prototyping and low-volume production.

1. Medical and Healthcare

SLS enables the creation of customised surgical guides, device housings, and patient-specific implants. The technology allows medical professionals to develop components that match unique anatomical requirements, improving fit, comfort, and clinical outcomes.

2. Aerospace

In aerospace, SLS is used to produce lightweight, geometrically complex structural parts. Engineers can quickly test designs for weight reduction, aerodynamic efficiency, and integration with existing assemblies, shortening development cycles.

3. Industrial and Engineering

SLS supports the fabrication of jigs, fixtures, housings, gears, and mechanical assemblies for low-volume manufacturing. Its flexibility allows engineers to rapidly trial new designs, optimise assembly workflows, and reduce the need for costly tooling.

4. Automotive

SLS is used to prototype and produce parts like custom brackets, ducting, interior components, and functional test parts that need to withstand heat and mechanical stress. It’s especially useful for low-volume runs of replacement parts or concept vehicle components where injection molding tooling costs aren’t justified yet.

5. Consumer Products

Product designers use SLS to create functional prototypes of items like enclosures, wearables, and mechanical assemblies before committing to mass production. Because SLS parts are strong enough for real-world testing, companies can validate fit, function, and durability early, catching design flaws before expensive tooling is built.

6. Robotics and Electronics

SLS is well suited for producing custom housings, brackets, and structural components for robotics and electronic devices, particularly where complex internal geometries or cable routing need to be built directly into the part. Its ability to create interlocking or moving parts in a single print also makes it useful for functional robotic assemblies without post-assembly.

SLS Best Practices

Whether you’re producing prototypes or end-use parts, following established SLS best practices can improve part quality, minimise defects, and increase overall production efficiency:

• Design for SLS: Take advantage of SLS’s support-free printing capability by incorporating complex geometries, internal channels, lattice structures, and interlocking components where appropriate.
• Optimise Part Orientation: Although SLS does not require support structures, part orientation still affects dimensional accuracy, surface finish, and the likelihood of warping. Proper orientation also improves packing efficiency within the build chamber.
• Allow Adequate Cooling Time: Let the powder bed cool gradually before removing parts. Controlled cooling reduces internal stresses and helps prevent warping and dimensional distortion.
• Use Appropriate Wall Thicknesses: Walls that are too thin may become fragile or deform during printing, while excessively thick sections increase build time and material consumption. Following recommended design guidelines helps improve print success.
• Reuse Powder Correctly: Unused SLS powder can often be reused, but it should be mixed with fresh material according to the manufacturer’s recommended refresh ratio to maintain consistent mechanical properties and print quality.
• Plan for Post-Processing Early: Consider finishing requirements during the design stage, such as machining allowances, dyeing, or protective coatings. Planning ahead reduces additional work after printing and helps ensure the final part meets both functional and aesthetic requirements.

ARRK Asia Delivers Performance-Driven Solutions

Creating reliable functional parts requires more than advanced technology—it demands expertise, careful planning, and understanding application requirements.

At ARRK Asia, our structured end-to-end approach supports projects from concept through completion, ensuring performance, precision, and efficiency at every stage.

Contact our team to discuss how SLS can support your next prototyping or low-volume production project.

Frequently Asked Questions

1. What is sintering?

Sintering is a manufacturing process that uses heat to fuse powdered materials into a solid object without fully melting them. In Selective Laser Sintering (SLS), a laser selectively sinters layers of polymer powder to build a three-dimensional part.

2. What is the difference between Selective Laser Sintering (SLS) and Selective Laser Melting (SLM)?

The main difference is how the material is fused. SLS sinters powder by heating it until the particles bond together without fully melting, and is most commonly used with polymers such as nylon. SLM fully melts metal powder to produce dense, high-strength metal parts, making it suitable for aerospace, automotive, and medical applications.

3. What is the difference between Selective Laser Sintering (SLS) and Stereolithography (SLA)?

SLS uses a laser to fuse powdered materials, while SLA uses a laser to cure liquid photopolymer resin. SLS produces durable functional parts without support structures, making it well-suited for engineering applications. SLA offers smoother surface finishes and finer detail, making it ideal for visual prototypes, concept models, and presentation pieces.

4. Is Selective Laser Sintering (SLS) faster than Fused Deposition Modelling (FDM)?

It depends on the project. SLS can produce multiple complex parts in a single build without support structures, making it more efficient for batch production. FDM is often faster and more cost-effective for producing a single, simple prototype.

5. Is Selective Laser Sintering (SLS) expensive?

SLS generally has a higher upfront cost than entry-level 3D printing methods such as FDM, because it requires specialised equipment and materials. However, it can be more cost-effective for functional prototypes and low-volume production, particularly when producing complex parts or multiple components in a single build.

6. Can Selective Laser Sintering (SLS) be used for metal parts?

Standard SLS is primarily used for polymer materials such as nylon. Metal parts are more commonly produced using Selective Laser Melting (SLM) or Direct Metal Laser Sintering (DMLS), which are additive manufacturing processes specifically designed for metal powders.
